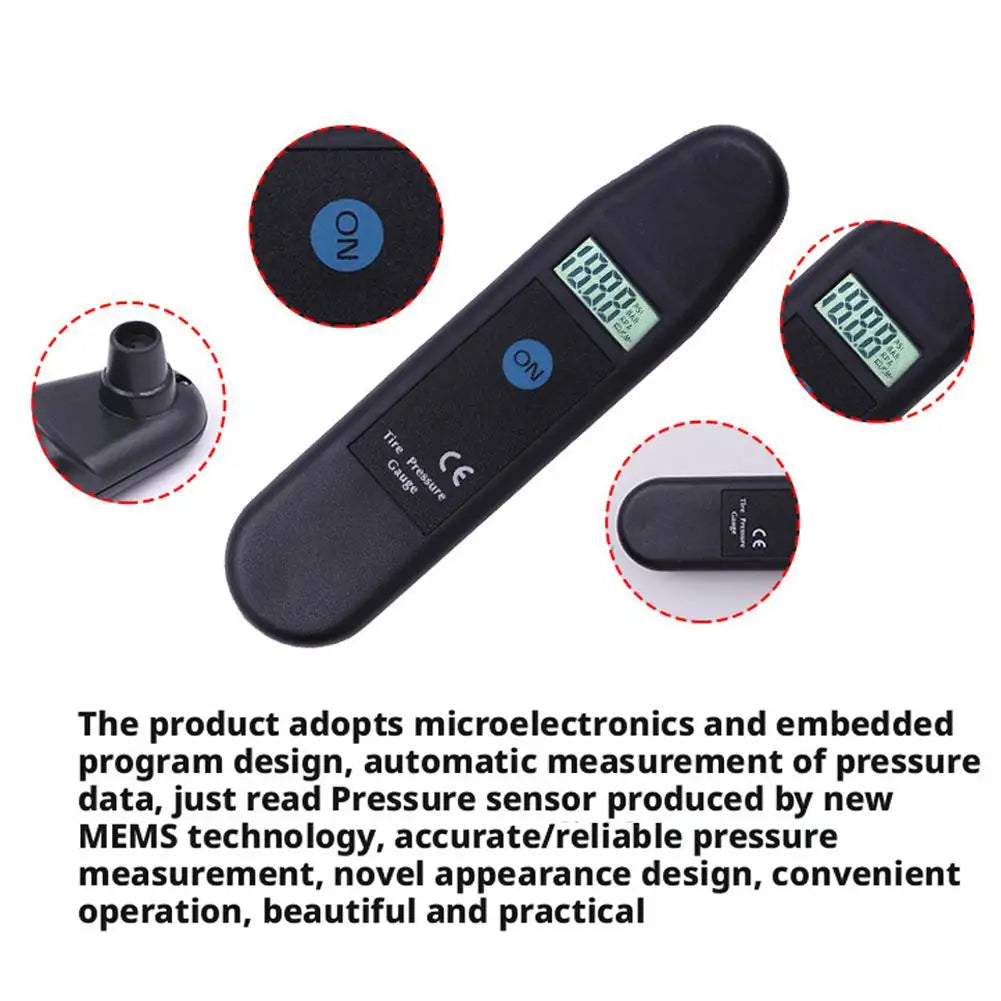

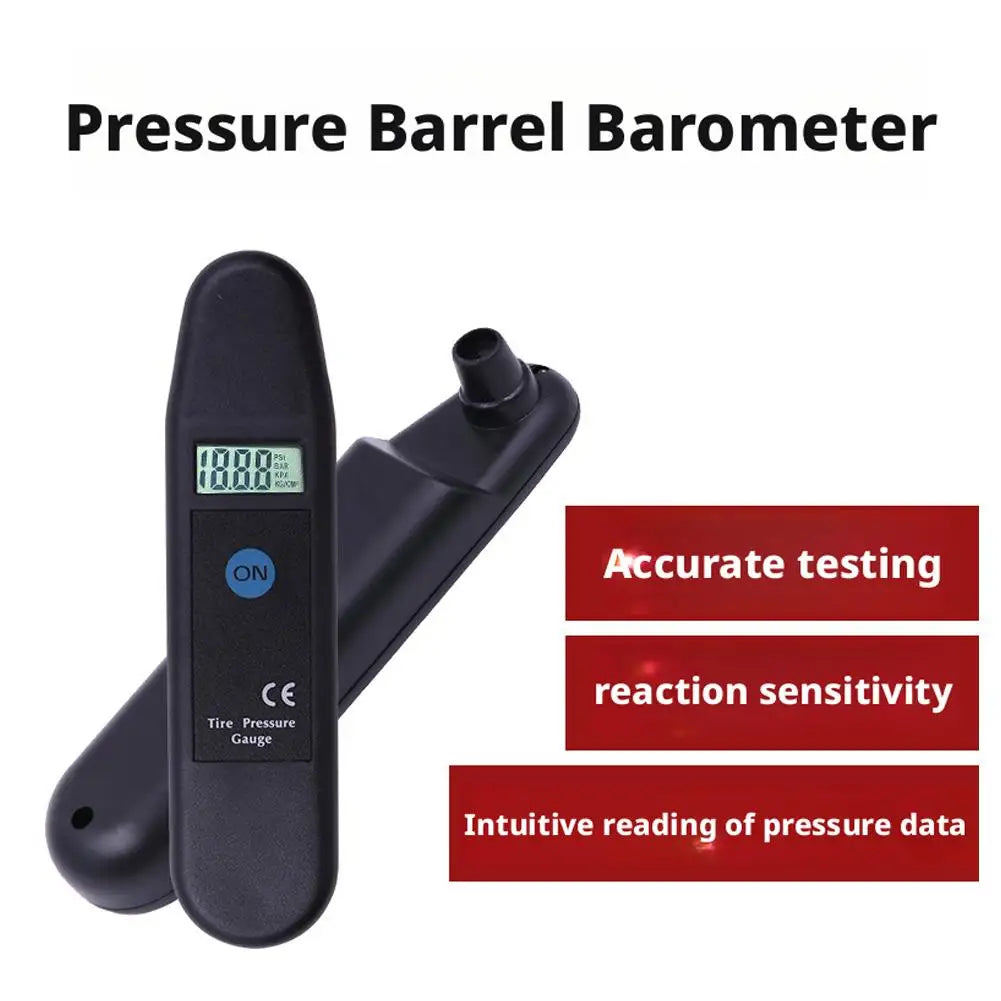

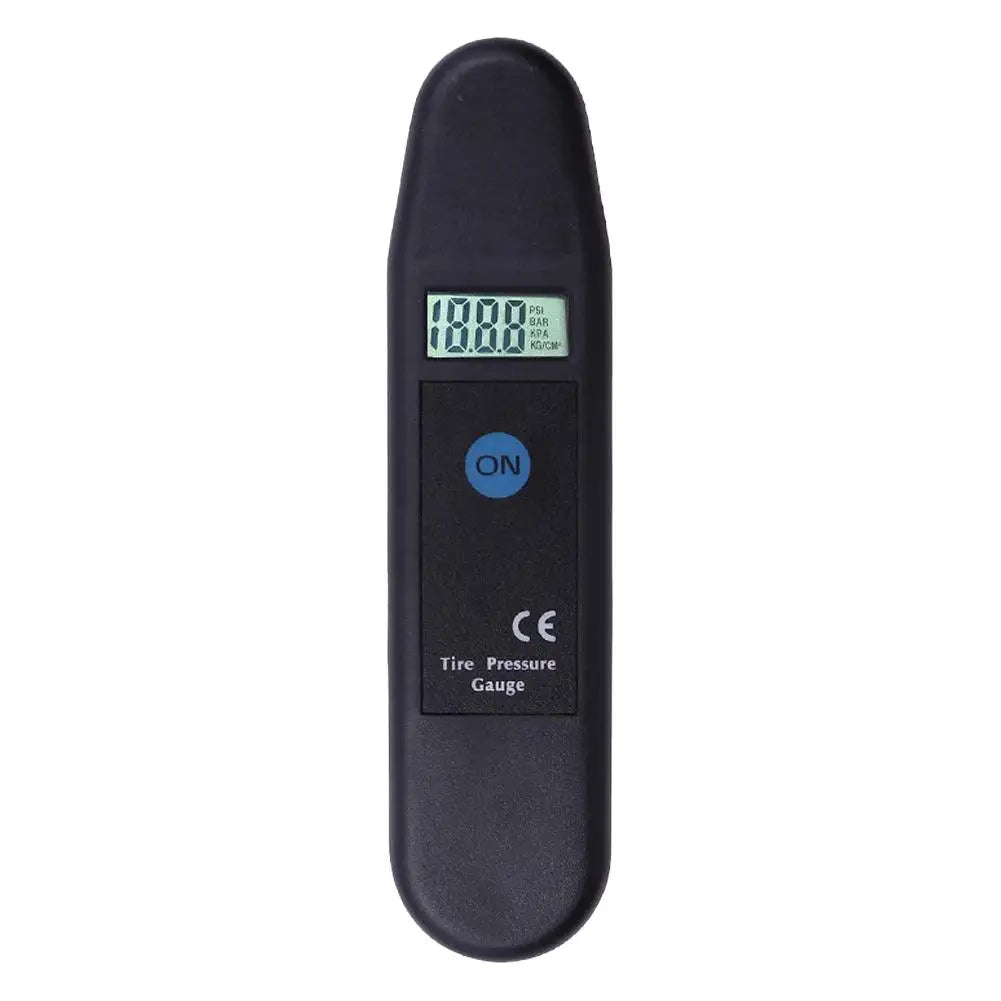

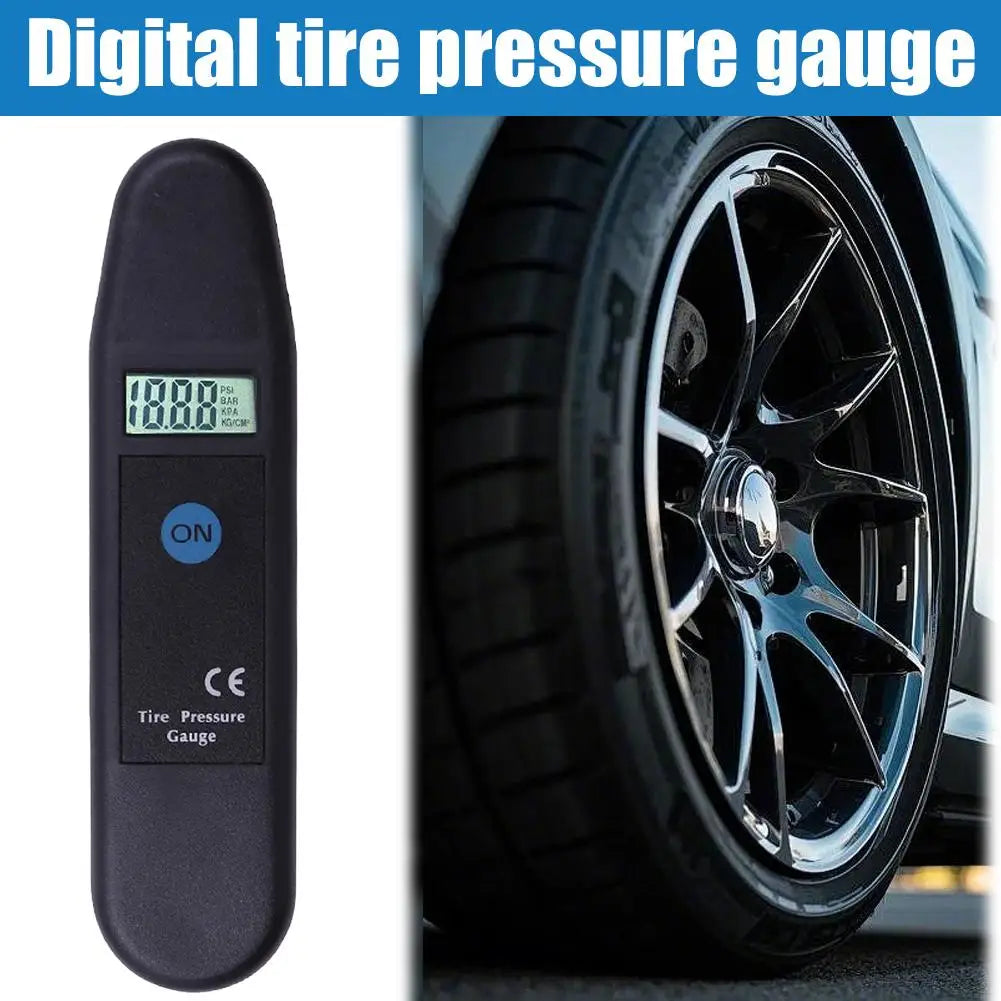

TG101 Digital Tire Pressure Gauge with LCD Display
Stay on top of your vehicle's safety and fuel efficiency with the TG101 Digital Tire Pressure Gauge. Compact, accurate, and easy to use, this handheld tester works on cars, trucks, SUVs, motorcycles, and more — giving you an instant, reliable reading every time. Made in Mainland China.
Key Features

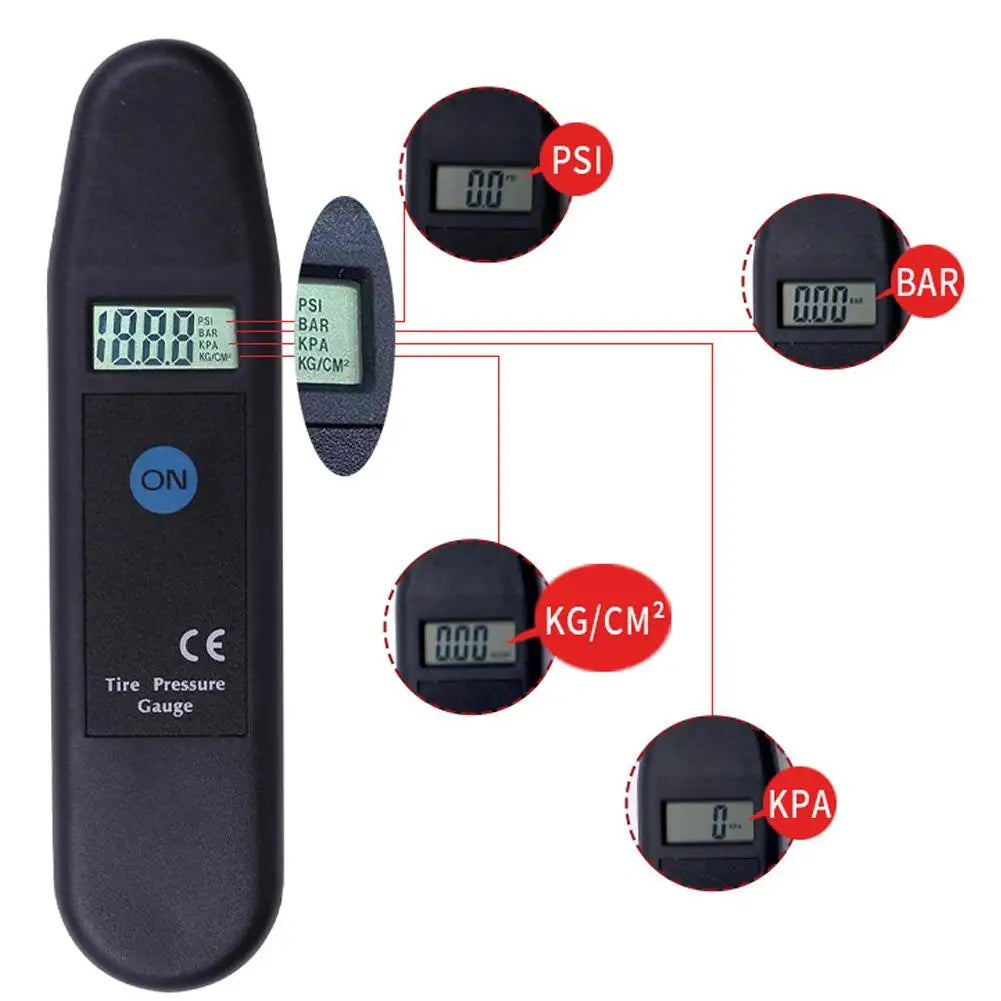

- Multi-Unit Display: Switch effortlessly between PSI, BAR, KPA, and Kg/cm² with a single button press — the reading updates instantly.
- Bright LCD Screen: Clear, easy-to-read backlit display makes checking tire pressure simple in any lighting condition.
- Quick & Accurate Readings: Align the nozzle with the tire valve, press firmly for a secure seal, and get a stable reading in just 3 seconds. Accuracy: ±1 PSI.
- Auto Data Hold: The last reading is stored and displayed for 15 seconds after removing the gauge from the valve — no more squinting to catch a fleeting number.
- Auto Power-Off: Powers down automatically after 60 seconds of inactivity to preserve battery life. Can also be shut off manually by holding the ON key for 3 seconds.
- Memory Function: Powers on displaying the most recent test result, so you always have a reference point.
- Wide Measurement Range: 1–150 PSI | 0–10 BAR | 5–995 KPA — suitable for passenger cars, trucks, and commercial vehicles.

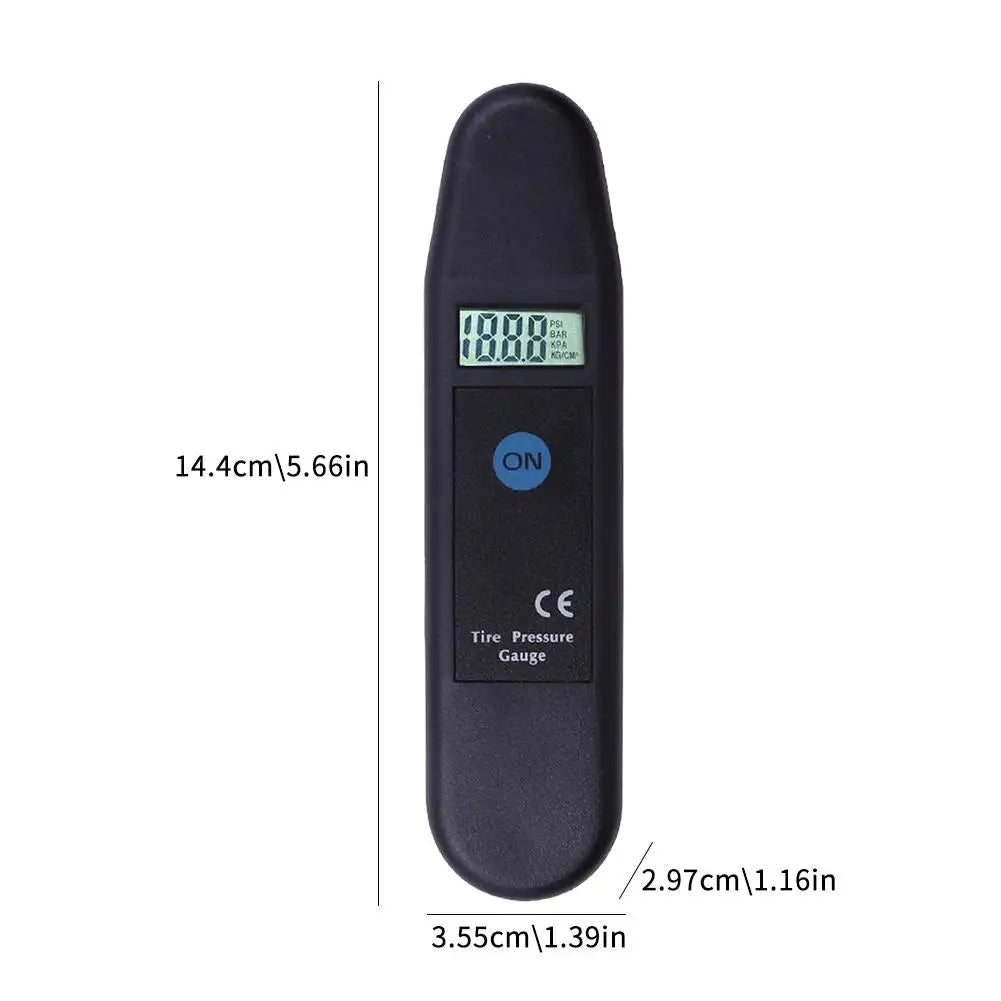

- Compact & Portable: Dimensions: 14.4 × 3.55 × 2.97 cm — slips easily into a glove box or tool bag.
Specifications
| Model | TG101 |
| Measurement Accuracy | ±1 PSI |
| Resolution | 1 PSI |
| Measuring Range | 1–150 PSI | 0–10 BAR | 5–995 KPA |
| Power Supply | Button/coin cell lithium battery (not included) |
| Working Temperature | 0°C – 50°C |
| Dimensions | 14.4 × 3.55 × 2.97 cm |
| Units | PSI, BAR, KPA, Kg/cm² |
What's in the Box?
- 1× TG101 Digital Tire Pressure Gauge
⚠️ Please Note: This gauge does not include a battery. A coin cell lithium battery must be purchased and installed separately before first use.
How to Use
- Install a coin cell battery to power the gauge.
- Press the ON button to power on. The last reading will be shown.
- Press ON to cycle through pressure units (PSI → BAR → KPA → Kg/cm²).
- Press the nozzle firmly onto the tire valve stem until there is no hissing sound.
- Hold steady for 3 seconds, then remove — the reading holds for 15 seconds.
- Repeat for remaining tires as needed.
Keep Your Garage Organized
Pair your tire gauge with other handy workshop tools from our store:
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- Tactical Retractable Spring Rope Keychain Lanyard – Outdoor
- 10-Pack Silicone Cable Ties – Reusable Cord Organizers
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: Does the TG101 tire pressure gauge come with a battery included?
A: No, the TG101 digital tire pressure gauge does not include a battery. You will need to purchase a coin cell (button) lithium battery separately and install it before the gauge can be used.
Q: What tire pressure units does the TG101 gauge support?
A: The TG101 supports four units of measurement: PSI, BAR, KPA, and Kg/cm². You can switch between units by pressing the ON button, and the display updates instantly to reflect the selected unit.
Q: Is this digital tire pressure gauge compatible with trucks and large vehicles?
A: Yes. With a wide measuring range of 1–150 PSI (0–10 BAR | 5–995 KPA), the TG101 is suitable for passenger cars, SUVs, trucks, and other vehicles with standard valve stems.
Q: How accurate is the TG101 tire pressure gauge?
A: The TG101 offers a measurement accuracy of ±1 PSI with a resolution of 1 PSI, making it a reliable tool for regular tire maintenance checks.
