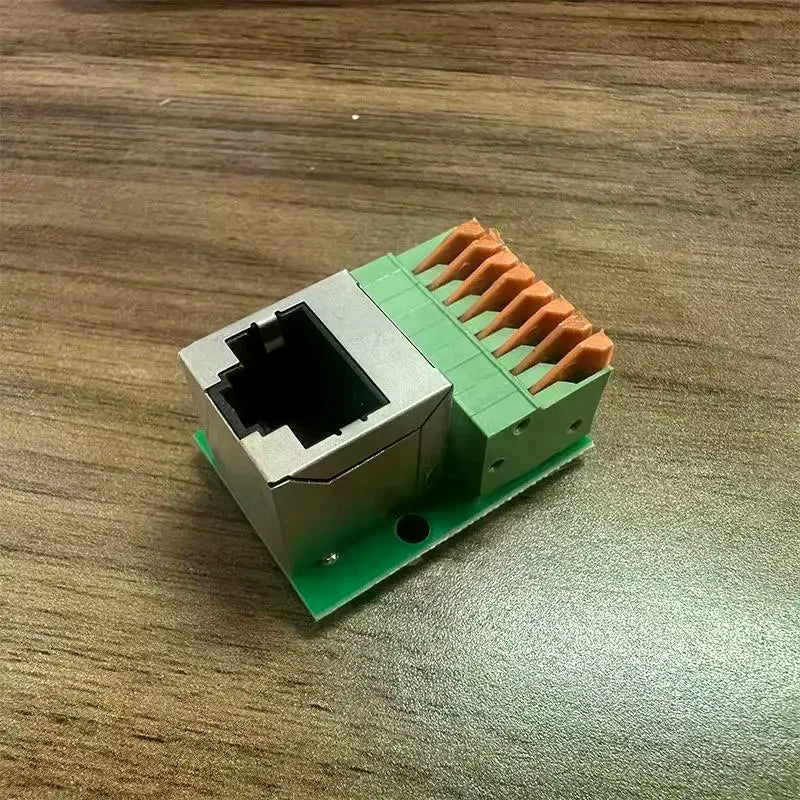

RJ45 Network Adapter Board with Solder-Free Terminal Block
Simplify your network wiring projects with this compact RJ45 Adapter Board. Designed for professionals and hobbyists alike, this welding-free terminal block board lets you connect Ethernet cables quickly and securely — no soldering iron required. Its DIN rail-mountable design makes it ideal for control panels, enclosures, and industrial setups where neat, reliable cable management is essential.
Key Features
- Solder-Free / Crimp Terminals: Connect wires effortlessly without any soldering — clean, fast, and beginner-friendly.
- RJ45 Female Socket (Horizontal): Standard RJ45 port accepts all common Ethernet plugs for plug-and-play connectivity.
- DIN Rail Mountable: Easily mounts onto standard DIN rails for organised, professional installations in electrical cabinets and control panels.
- FR-4 PCB Substrate: High-quality 1.6 mm thick FR-4 board for excellent mechanical rigidity and durability.
- Compact Size: Measures just 33 × 24 mm — small footprint, big utility.
- Plastic & Metal Construction: Durable mixed materials ensure long-lasting performance in demanding environments.
- No Battery / No Wireless: Simple, passive adapter with no added complexity.
Specifications
| Dimensions | 33 × 24 mm |
| PCB Thickness | 1.6 mm |
| PCB Material | FR-4 |
| Terminal Type | Solder-Free Crimp Terminal |
| Socket Type | RJ45 Horizontal Female |
| Materials | Plastic, Metal |
| Voltage Rating | Below 50V AC or 75V DC (Low Voltage) |
| Quantity | 1 piece |
| Country of Origin | Made in Mainland China |
Ideal For
- Industrial control panel wiring
- Home automation and smart home network setups
- DIY electronics and prototyping projects
- Network infrastructure organisation
- Lab and workshop cable management
You May Also Like
- 10-Pack Silicone Cable Ties – Reusable Cord Organizers
- Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does this RJ45 adapter board require soldering?
A: No — this board features solder-free crimp terminals, so you can connect your Ethernet wires quickly and easily without any soldering equipment. Just insert and crimp the wires to the terminal block for a secure connection.
Q: Can this RJ45 adapter board be mounted on a DIN rail?
A: Yes! The board is designed to be DIN rail mountable, making it perfect for installation inside electrical enclosures, control panels, and industrial cabinets for a tidy, professional finish.
Q: What type of RJ45 socket does this board use?
A: The board features a standard horizontal RJ45 female socket, compatible with all standard RJ45 Ethernet plugs (Cat5e, Cat6, Cat6a).
Q: What are the dimensions of this adapter board?
A: The board measures 33 × 24 mm with a PCB thickness of 1.6 mm, making it a compact solution for tight spaces and organised installations.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
