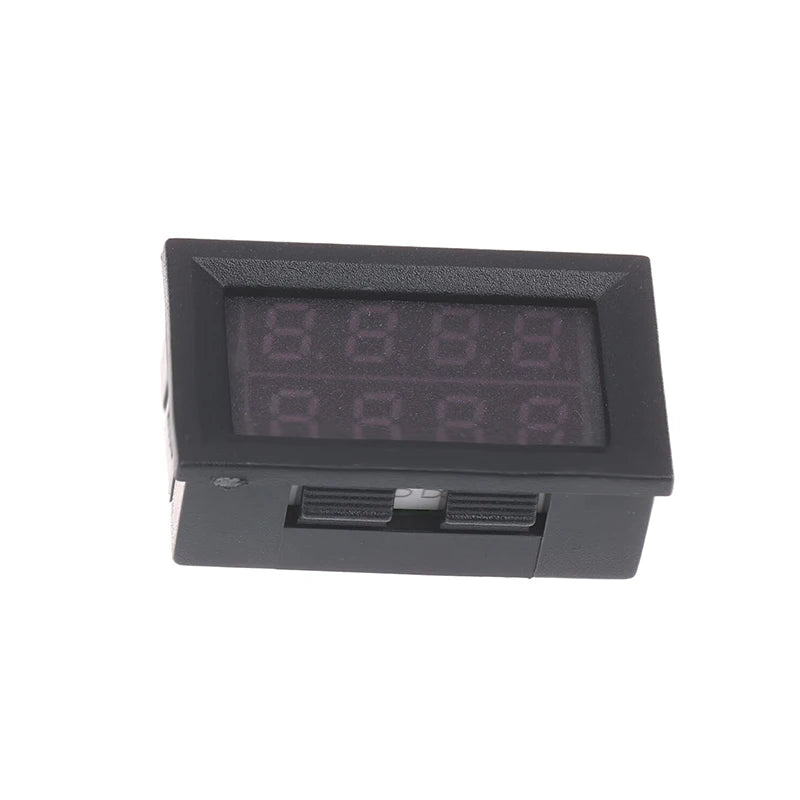

Mini Dual Display Digital Voltmeter & Ammeter – DC 0–100V / 10A
Monitor both voltage and current at a glance with this compact 4-digit, 5-wire mini digital voltmeter ammeter. Featuring a bright dual LED display, this all-in-one meter is ideal for electronics hobbyists, DIY builders, solar setups, battery monitoring, and workshop bench power supplies. Despite its tiny footprint (just 48×28 mm), the 0.28-inch LED digits are easy to read even in low-light environments.
Key Features

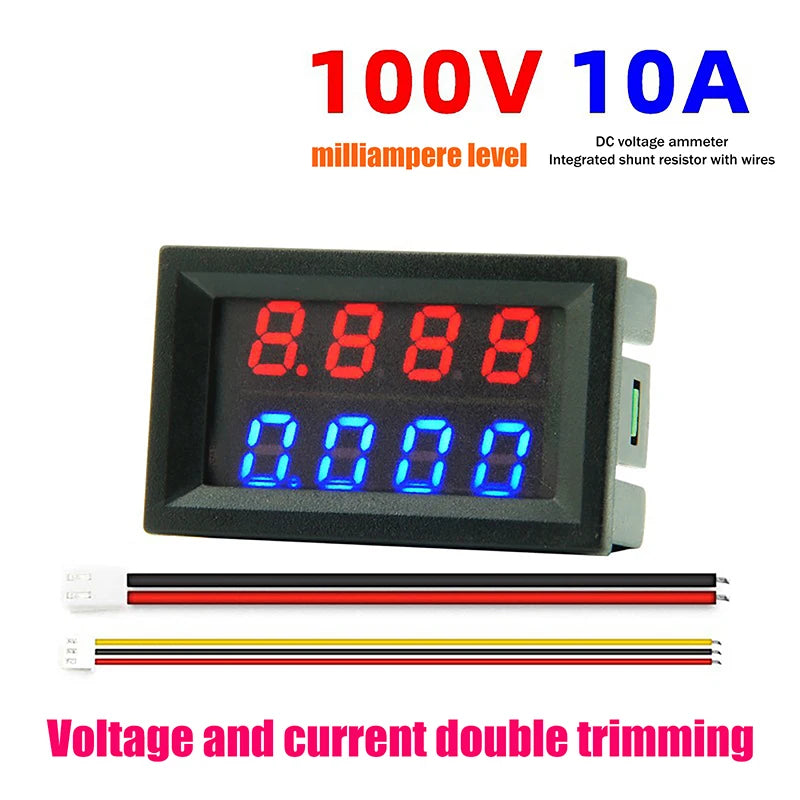

- Dual Measurement: Simultaneously displays DC voltage (0–100V) and current (0.000–9.999A) on a twin LED readout.
- 4-Digit Precision: High-resolution 4-digit display delivers clear, accurate readings for both voltage and amperage.
- Wide Voltage Range: Measures DC 0–100V; operates on a working supply of DC 4V–30V.
- Compact & Panel-Mount Ready: Ultra-slim 48×28 mm body fits neatly into project enclosures, control panels, and custom builds.
- Stable & Long-Lasting: Built with quality components for consistent, reliable performance across a wide operating temperature range of -10°C to 65°C.

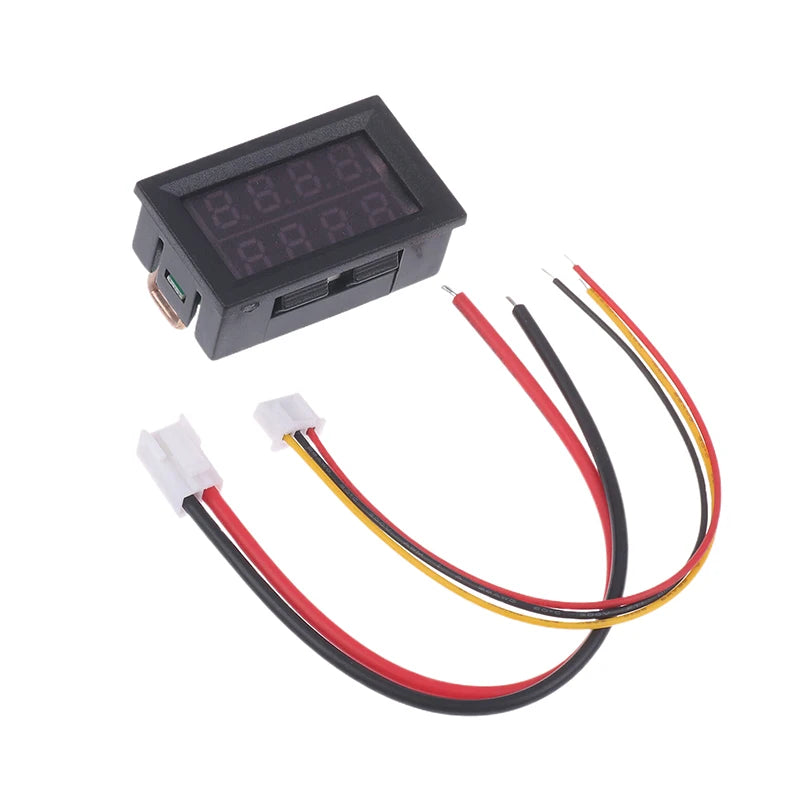

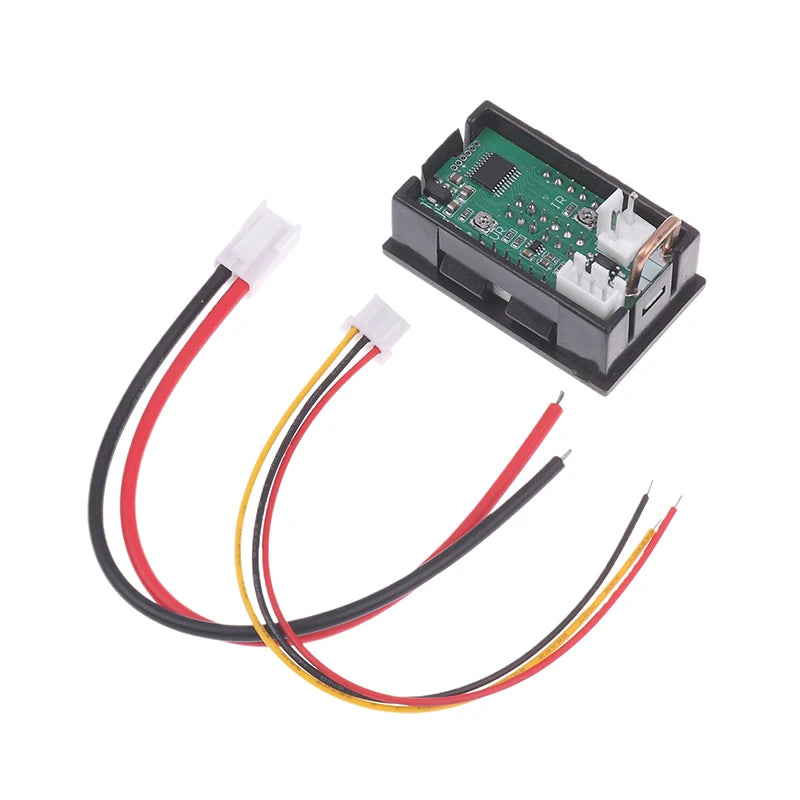

- Easy to Install: 5-wire connection makes wiring straightforward for both beginners and experienced makers.
Technical Specifications
| Measuring Voltage | DC 0–100V |
| Measuring Current | 0.000–9.999A (10A max) |
| Working Voltage | DC 4V–30V |
| Display Size | ~0.28 inch LED digits |
| Display Type | Dual 4-digit LED (Voltage + Current) |
| Wires | 5-wire connection |
| Operating Temperature | -10°C to 65°C |
| Dimensions | 48 × 28 mm / 1.89 × 1.10 in |
| Battery Included | No |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × Mini Digital Voltmeter & Ammeter Module
Perfect For
- DIY electronics projects & prototyping
- Solar panel & battery bank monitoring
- Bench power supply readouts
- RC vehicles, e-bikes & portable power systems
- Custom control panel builds
Looking for more tools and accessories for your workshop or DIY projects? Check out our Screw Extractor Drill Bit Set – Carbon Steel or keep your cables organized with our 10-Pack Silicone Cable Ties – Reusable Cord Organizers.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the maximum voltage this digital voltmeter ammeter can measure?
A: This mini digital voltmeter ammeter can measure DC voltages from 0 to 100V, making it suitable for a wide range of low-voltage DC applications including batteries, solar panels, and bench power supplies.
Q: Does this voltmeter ammeter need a separate power supply to operate?
A: Yes, the module requires a working supply voltage of DC 4V–30V to power its LED display. This is separate from the circuit being measured and is typically wired in via the dedicated power wires in the 5-wire harness.
Q: Can this dual LED meter be mounted inside a project enclosure or panel?
A: Absolutely. The compact 48×28 mm body is designed for panel mounting, making it easy to embed into custom enclosures, control boxes, or DIY power supply builds for a clean, professional look.
