MESR-100 Professional ESR Capacitor & Low-Ohm Meter
The MESR-100 is a precision auto-ranging capacitor ESR (Equivalent Series Resistance) and low-ohm meter designed for electronics technicians, hobbyists, and repair professionals. Using a true 100 kHz sine-wave test signal, it measures capacitor internal resistance the same way capacitor manufacturers do — giving you accurate, reliable results fast.
With in-circuit testing capability, you can check capacitors directly on the board without desoldering, making it indispensable when troubleshooting TVs, LCD monitors, audio amplifiers, and other electronic equipment. A handy printed reference table is included right on the unit for instant pass/fail assessment.
Key Features
- Auto-Ranging: Measurement range from 0.001 Ω to 100.0 Ω — no manual range selection needed
- True 100 kHz Sine-Wave Signal: Cancels capacitive impedance for a pure ESR reading that matches factory test methods
- In-Circuit Testing: Applies less than 15 mV DC peak-to-peak, keeping capacitors safe while they remain on the board
- 4-Digit High Resolution: Reads down to 0.001 Ω in the 0–1 Ω range
- Dual Test Clips: Fast, easy connection to capacitor leads for quick inspection
- Flexible Power Options: Runs on 2 × AA batteries (not included) for over 80 hours of use, or via 5 V Micro-USB
- Compact & Lightweight: Approx. 14.5 × 8 × 3 cm / 139.6 g — easy to handle on the bench or in the field
- Built-In Reference Table: Printed directly on the unit for instant ESR range verification
Measurement Accuracy
| Range | Accuracy | Refresh Time (Manual) |
|---|---|---|
| 0.000 – 1.000 Ω | 1% + 2 Digit | ~0.4 s |
| 1.000 – 10.00 Ω | 1% + 1 Digit | ~0.4 s |
| 10.00 – 100.0 Ω | 2% + 1 Digit | ~0.4 s |
Auto mode: 0–2 s (additional time may be needed depending on capacitance value).
Specifications
- Color: Black
- Measurement Range: 0.001 Ω – 100.0 Ω
- Wide Range Support: Capacitors >1 µF
- Resolution: 4-digit / 0.001 Ω @ 1 Ω range
- Test Voltage: <15 mV DC (peak-to-peak)
- Power Supply: 5 V Micro-USB or 2 × AA 1.5 V batteries (not included)
- Operating Current: 0.02 A
- Battery Life: >80 hours
- Item Size: Approx. 14.5 × 8 × 3 cm (5.7 × 3.1 × 1.2 in)
- Item Weight: Approx. 139.6 g (4.9 oz)
- Country of Origin: Made in Mainland China
What's in the Box

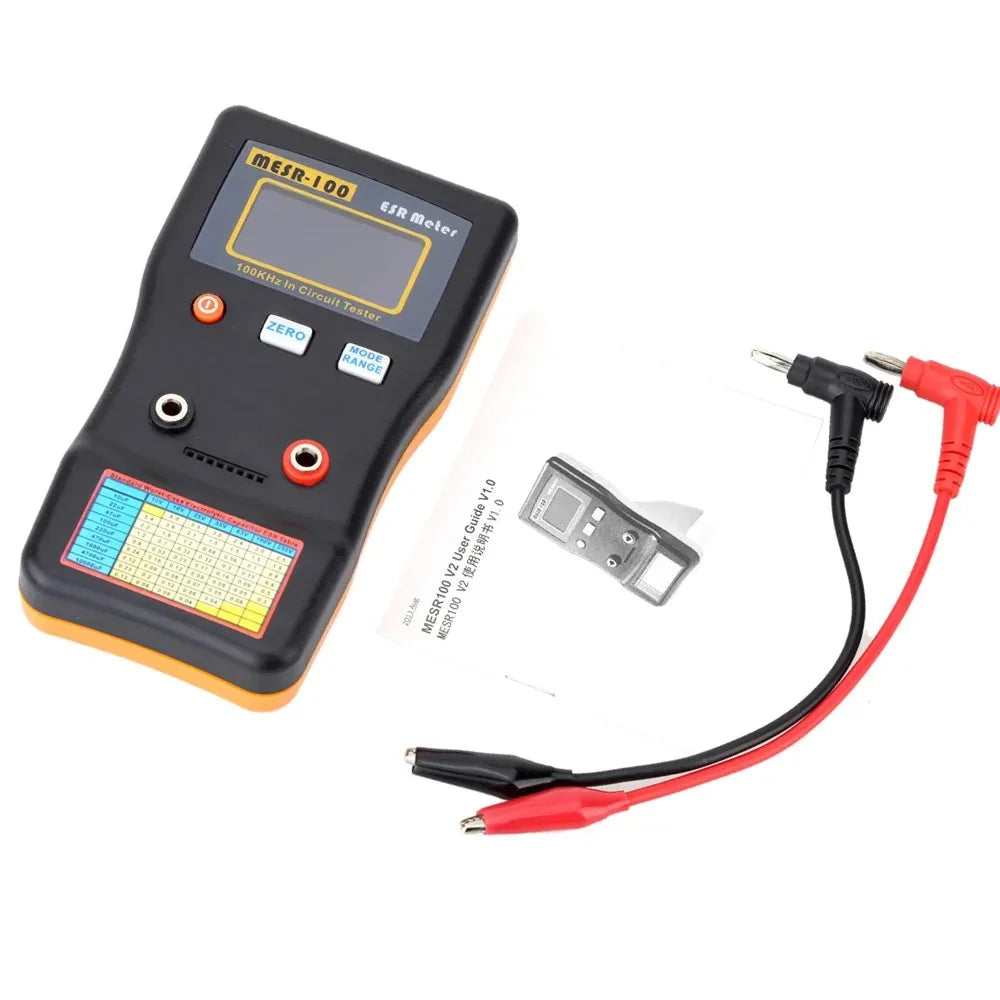

- 1 × MESR-100 Capacitor ESR Meter
- 2 × Test Clips
- 1 × User Manual
Note: Batteries are NOT included. This meter tests capacitor internal resistance (ESR), not capacitance value.
