MESR-100 ESR Capacitor Ohm Meter – In-Circuit Tester
MESR-100 ESR Capacitor Ohm Meter – In-Circuit Tester
MESR-100 Professional ESR & Low-Ohm Capacitor Tester

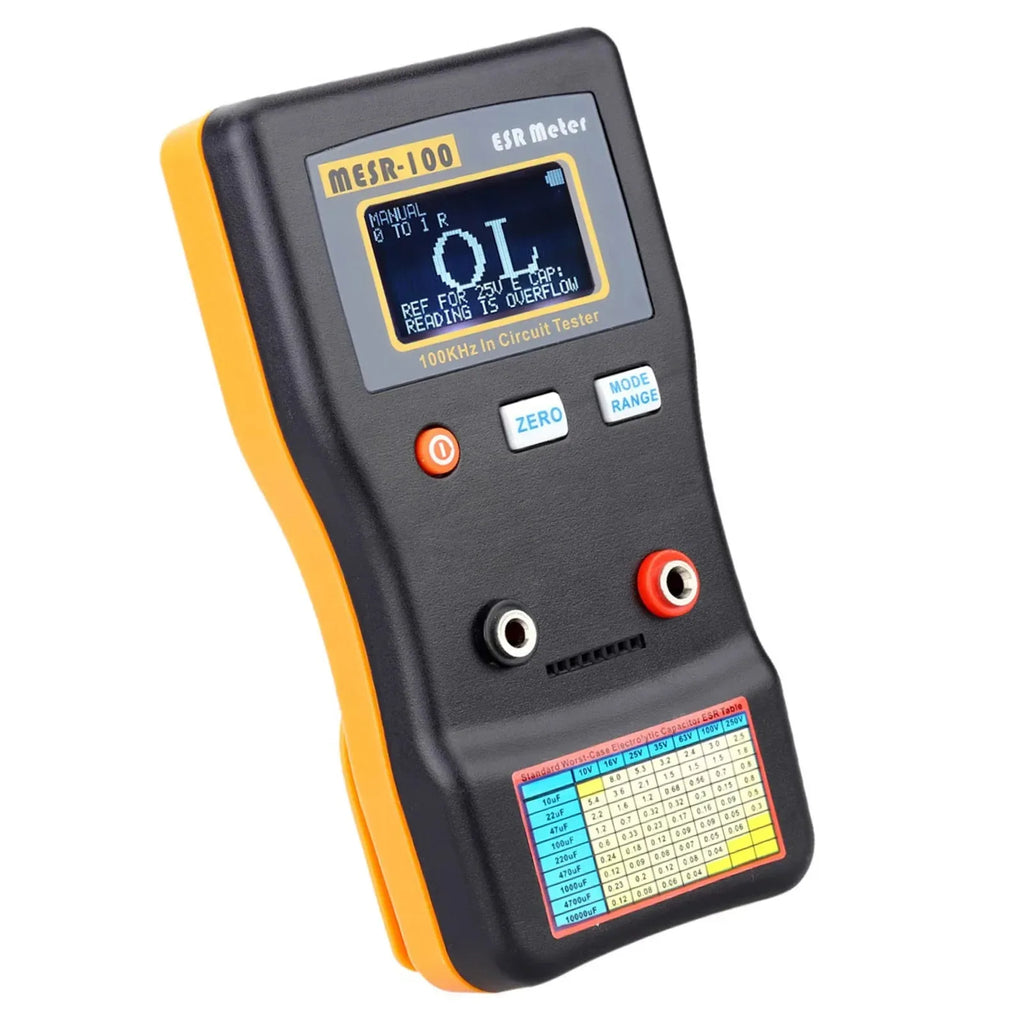

The MESR-100 ESR Capacitance Ohm Meter is a professional-grade tool designed for electronics technicians, hobbyists, and repair specialists. It measures the Equivalent Series Resistance (ESR) of capacitors with precision, using a true 100 kHz sine wave — the same measurement method used by capacitor manufacturers — so you get reliable, accurate readings every time.
Whether you're servicing a TV, LCD monitor, audio board, or any other electronic device, this meter lets you quickly determine if a capacitor is in good condition or has degraded — without removing it from the circuit.
Why Use an ESR Meter?
A capacitor's ESR (internal series resistance) rises as it ages or fails. A standard capacitance meter won't catch this — but the MESR-100 will. By applying less than 15mV DC peak-to-peak, it safely tests capacitors while they remain installed on the board, saving you hours of desoldering work.
Key Features
- Auto-Ranging: Measures ESR from 0.001Ω to 100.0Ω automatically
- 100 kHz Sine Wave Measurement: Cancels capacitive impedance for a true series resistance reading
- In-Circuit Testing: Apply directly on-board — no need to desolder components
- High Resolution: 4-digit display with 0.001Ω resolution in the 1Ω range
- Accuracy: Up to ±1% (range-dependent)
- Dual-Mode Operation: Auto mode (0–2s per reading) or Manual mode (~0.4s per reading)
- Dual Power Options: 2 × AA batteries (not included) or 5V Micro-USB external power
- Battery Life: Over 80 hours on AA batteries
- Printed Reference Table: Quick-check table printed on the unit for fast diagnosis
- Compact & Lightweight: 14.5 × 8 × 3 cm, 139.6g — easy to handle on the workbench
Measurement Range & Accuracy
| Range | Accuracy | Refresh Time (Manual) |
|---|---|---|
| 0.000 – 1.000Ω | ±1% + 2 Digits | ~0.4s |
| 1.000 – 10.00Ω | ±1% + 1 Digit | ~0.4s |
| 10.00 – 100.0Ω | ±2% + 1 Digit | ~0.4s |
Technical Specifications
- Color: Black
- Measurement Range: 0.001Ω – 100.0Ω ESR; works with capacitors >1µF
- Measuring Voltage: <15mV DC peak-to-peak
- Power: 2 × AA 1.5V batteries (not included) or 5V Micro-USB
- Operating Current: 0.02A
- Item Size: 14.5 × 8 × 3 cm (5.7 × 3.1 × 1.2 in)
- Item Weight: ~139.6g (4.9 oz)
- Package Size: 17 × 9 × 5 cm (6.7 × 3.5 × 2.0 in)
- Package Weight: ~218g (7.7 oz)
- Made in Mainland China
What's in the Box
- 1 × MESR-100 Capacitance ESR Meter
- 2 × Test Clips
- 1 × User Manual
Note: This meter measures the internal series resistance (ESR) of capacitors. It is not intended for measuring capacitance values.
