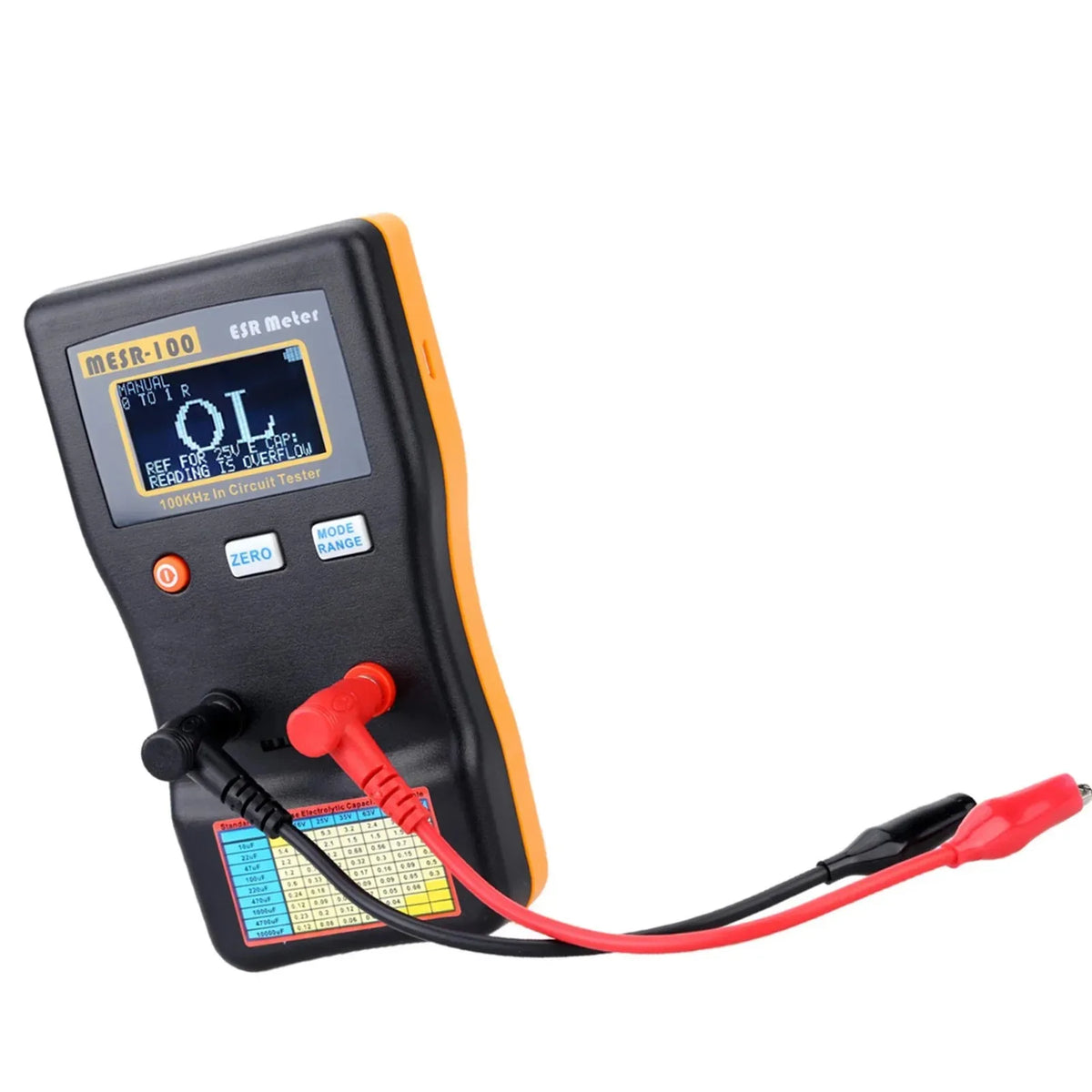

MESR-100 Professional ESR & Low Ohm Capacitor Meter
The MESR-100 is a precision auto-ranging capacitor ESR (Equivalent Series Resistance) and low-ohm meter designed for electronics technicians, hobbyists, and repair professionals. Using a true 100 kHz sine wave measurement method — identical to capacitor manufacturer testing standards — this compact tester lets you accurately evaluate capacitor condition while components remain in-circuit, saving you hours of desoldering work.
Whether you're servicing TVs, LCD monitors, audio amplifiers, or other circuit boards, the MESR-100 tells you instantly whether a capacitor is good or degraded — without removing it from the board.
Made in Mainland China.
Why ESR Testing Matters
A capacitor can test at its correct capacitance value yet still be faulty — a high internal series resistance (ESR) is the real culprit in most capacitor failures. The MESR-100 targets exactly this: it applies less than 15 mV DC (peak-to-peak) across the component, keeping voltage low enough for safe in-circuit measurement while still delivering a highly accurate ESR reading.
Key Features
- Auto-Ranging: Automatically selects the best measurement range from 0.001 Ω to 100.0 Ω — no manual range switching needed.
- True 100 kHz Sine Wave: Cancels capacitive reactance so you measure only the true series resistance value.
- In-Circuit Testing: Apply less than 15 mV peak-to-peak — safe for components still mounted on the board.
- 4-Digit LCD Display: High-resolution 0.001 Ω readout at the 1 Ω range for precise results.

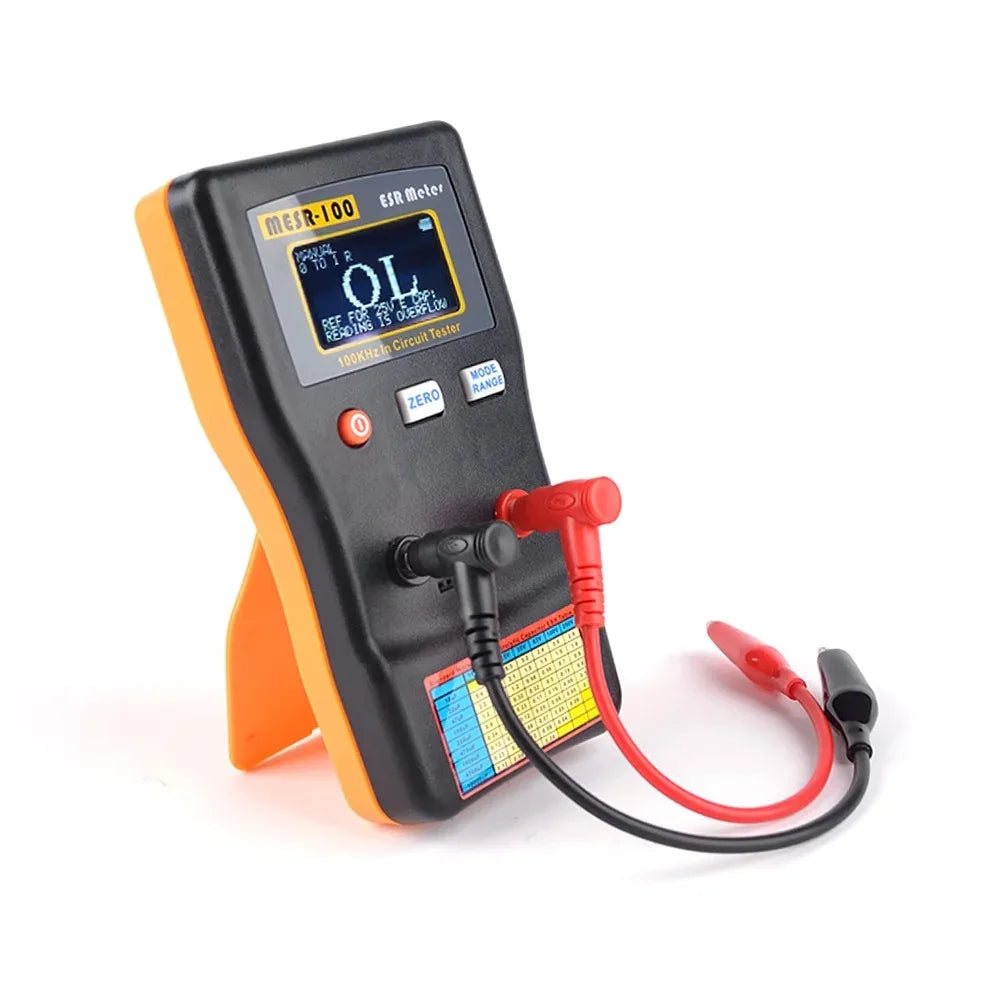

- Dual Test Clips Included: Spring-loaded clips for fast, hands-free component contact.

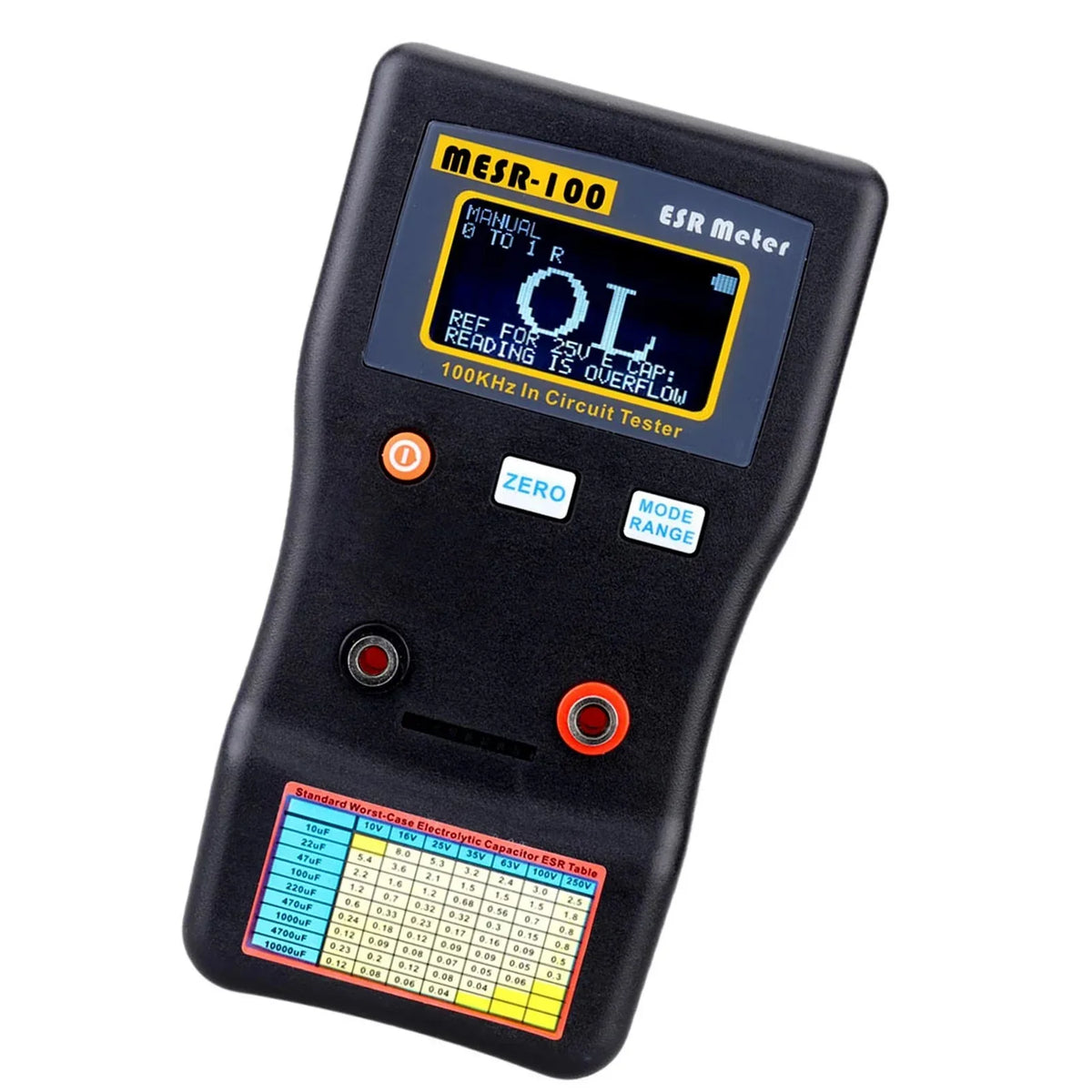

- Built-In Reference Table: Printed ESR chart on the meter body for instant pass/fail comparison.
- Dual Power Options: 5V Micro-USB or 2 × AA batteries (not included) for bench or field use.
- Long Battery Life: Over 80 hours on a set of AA batteries.
- Compact & Lightweight: Just 139.6 g — easy to handle during board-level diagnostics.
Measurement Ranges & Accuracy
| Range | Accuracy | Refresh Time |
|---|---|---|
| 0.000 – 1.000 Ω | 1% + 2 Digit | ~0.4 s |
| 1.000 – 10.00 Ω | 1% + 1 Digit | ~0.4 s |
| 10.00 – 100.0 Ω | 2% + 1 Digit | ~0.4 s |
Auto mode: 0–2 seconds (longer for higher capacitance values). Accuracy verified after zeroing with 1 Ω, 10 Ω, and 100 Ω reference resistors.
Full Specifications
- Color: Black
- Measurement Range: 0.001 Ω – 100.0 Ω (ESR / Internal Resistance)
- Minimum Capacitance: >1 µF
- Resolution: 4 digits / 0.001 Ω at 1 Ω range
- Test Frequency: 100 kHz sine wave
- Test Voltage: <15 mV DC peak-to-peak
- Power: 5V Micro-USB OR 2 × AA 1.5V batteries (not included)
- Operating Current: 0.02 A
- Battery Life: >80 hours
- Item Dimensions: 14.5 × 8 × 3 cm (5.7 × 3.1 × 1.2 in)
- Item Weight: ~139.6 g (4.9 oz)
- Package Dimensions: 17 × 9 × 5 cm (6.7 × 3.5 × 2.0 in)
- Package Weight: ~218 g (7.7 oz)
What's in the Box
- 1 × MESR-100 Capacitor ESR Meter
- 2 × Test Clips
- 1 × User Manual
- Batteries and USB cable not included
