Mechanical Timer Socket 16A 3680W 24H EU Germany Plug

Take Full Control of Your Appliances – Automatically

The Mechanical Timer Socket (16A / 3680W) is a robust, easy-to-use 24-hour plug-in timer designed for European and German-style (Schuko) outlets. Whether you want to automate lights, fans, heaters, or any other household appliance, this timer gives you precise 30-minute interval scheduling without needing Wi-Fi, apps, or any technical setup. Made in Mainland China.

Key Features

• High Power Rating: Supports up to 16A / 3680W (MAX 4000W peak), making it compatible with a wide range of appliances.
• 24-Hour Mechanical Dial: Simple push-pin segments, each representing 30 minutes, let you program your schedule in seconds.
• 3-Mode Side Switch: Instantly toggle between ON (always on), OFF (always off), or AUTO (timer-controlled) modes.
• Durable Mechanical Design: No battery required for operation — purely gear-driven for long-lasting reliability.
• EU & German (Schuko) Plug Compatible: Designed specifically for European and Spain region outlets (250VAC, 50Hz).
• Indoor Use: Compact and safe for indoor environments — keep away from damp or corrosive areas.

How to Use

1. Ensure all pins are in the UP (Power OFF) position before setting.
2. Slide the side switch to AUTO mode.

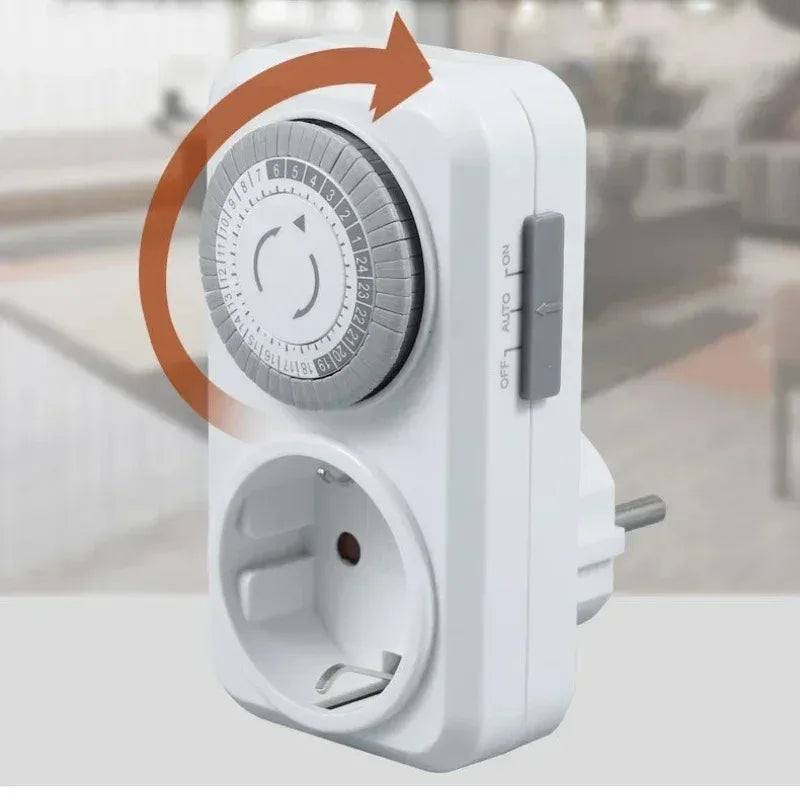

3. Turn the dial clockwise to align the black arrow with the current time of day. Important: Never rotate counterclockwise — this can damage the internal gear mechanism.
4. Push down the pins for the time slots you want the appliance to be ON. Each pin = 30 minutes.
5. Plug the timer into a wall outlet and connect your appliance to the timer socket. Make sure your appliance is switched ON.
6. The timer will now automatically switch your appliance on and off according to your schedule.

Specifications

Important Notes

• Time must be recalibrated after a power outage.
• Do not exceed the rated electrical load.
• Always rotate the dial clockwise only when setting the time.
• For indoor use only — do not expose to moisture or corrosive environments.

You Might Also Like

• 10-Pack Silicone Cable Ties – Reusable Cord Organizers
• Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
• Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What type of plug does this mechanical timer socket use?

A: This timer uses a European Schuko (Germany-type) plug, making it fully compatible with standard EU and Spain region wall outlets operating at 250VAC / 50Hz.

Q: How precise is the timer scheduling on this 24-hour mechanical timer?

A: Each push-pin segment on the 24-hour dial represents 30 minutes. You can set your appliance to turn on and off at any 30-minute interval throughout the day by simply pressing the appropriate pins down.

Q: What happens to the timer settings after a power outage?

A: Because this is a fully mechanical timer (no internal battery backup), the current time displayed on the dial will need to be recalibrated after any power outage. Your pin schedule settings will remain intact — only the clock position needs to be reset.

Q: Can I use this timer socket with high-powered appliances like heaters or fans?

A: Yes — this timer is rated for up to 16A and 3680W (with a peak of 4000W), making it suitable for many high-draw appliances. Always ensure your device does not exceed the stated electrical ratings.
