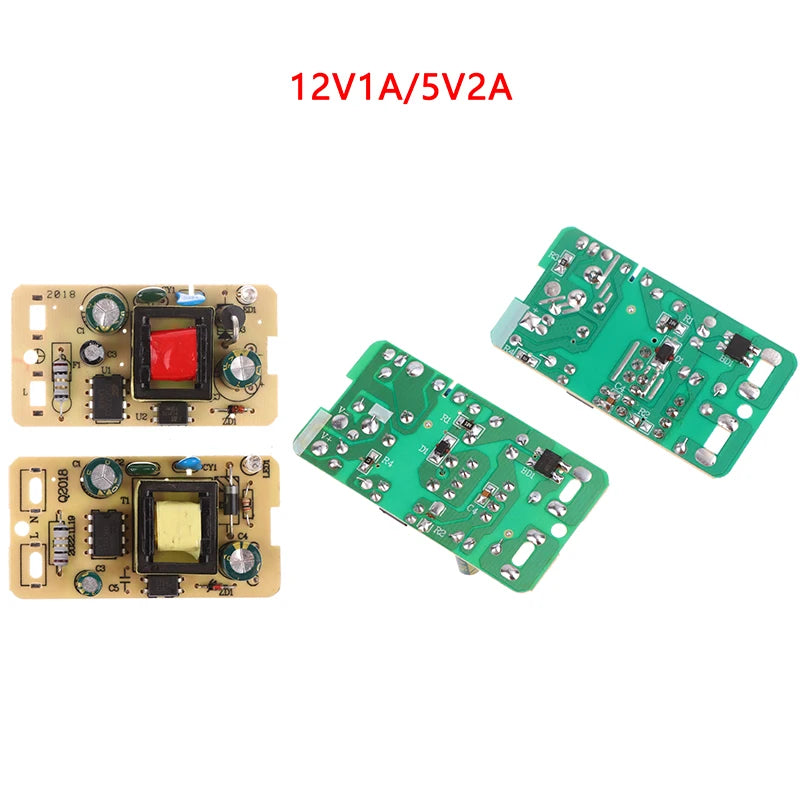

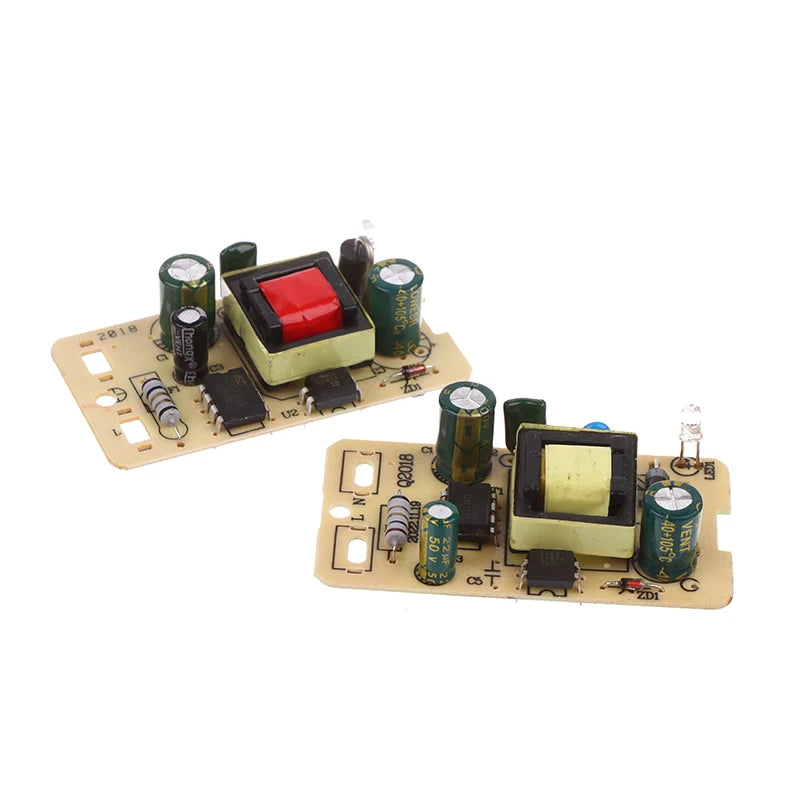

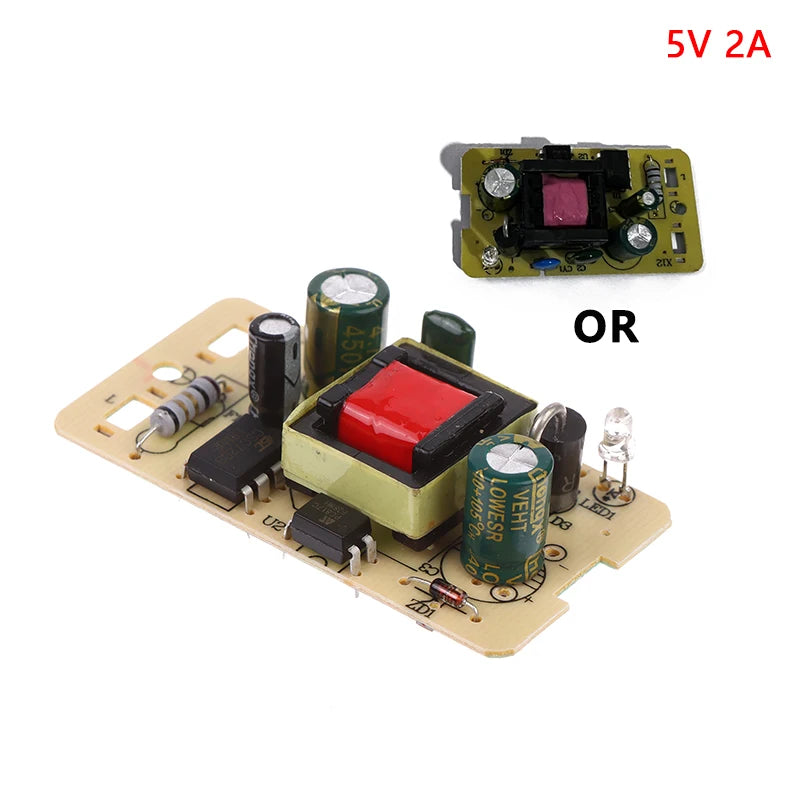

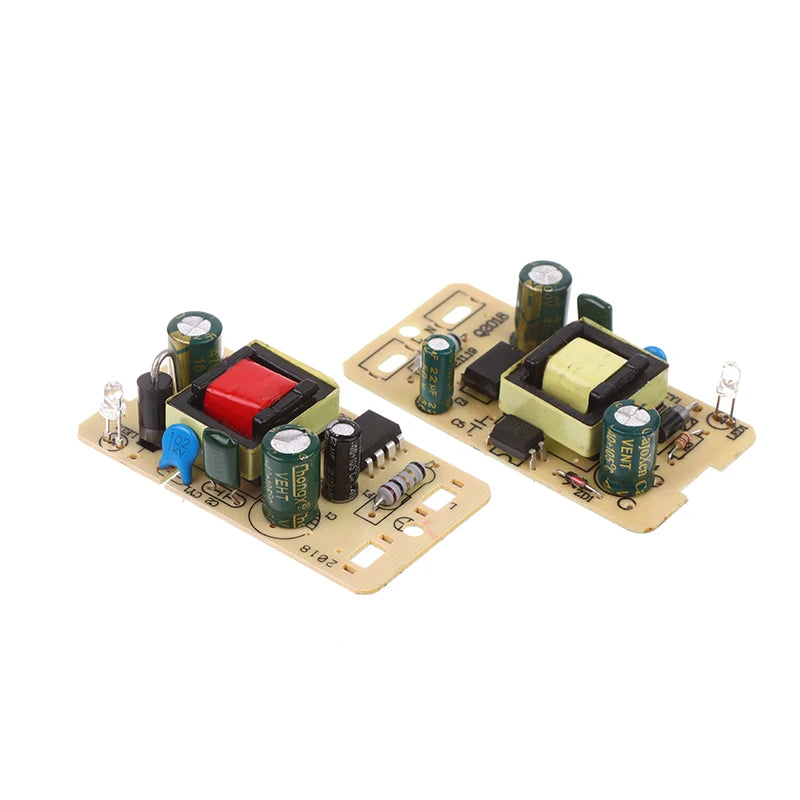

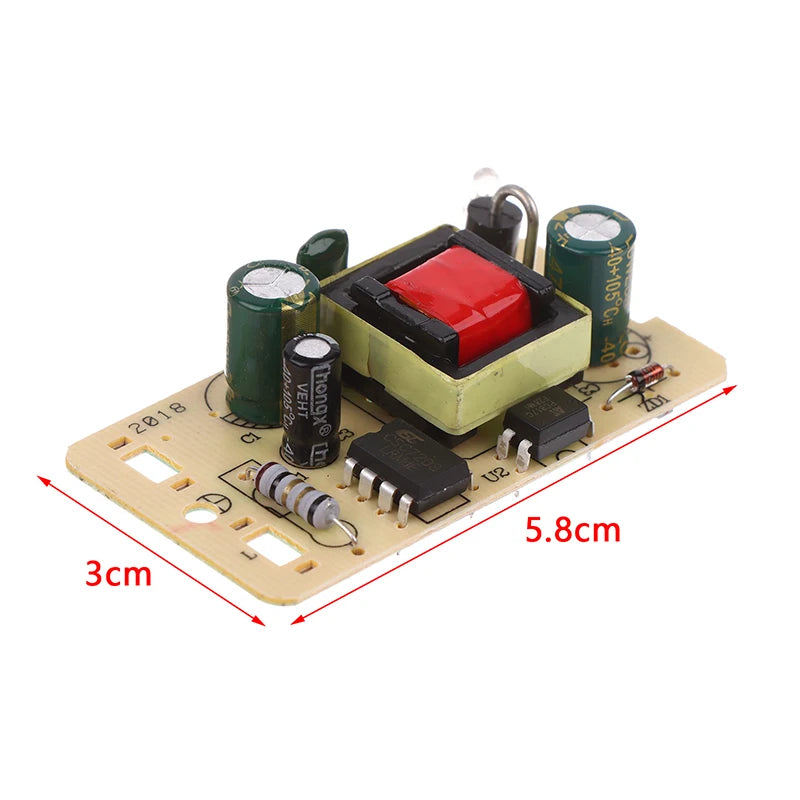

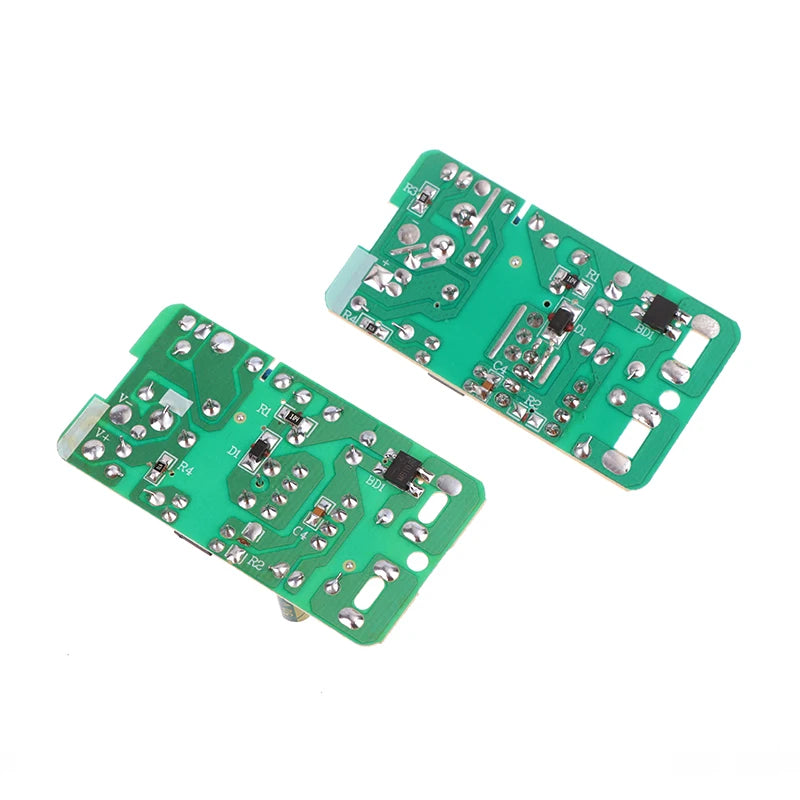

10W Isolated Switching Power Module 5V 2A / 12V 1A PCB

Compact Isolated Switching Power Supply Module – 5V 2A / 12V 1A

This bare-board isolated switching power supply module delivers stable DC output from any global AC mains voltage (100–240V). Engineered with pulse width modulation (PWM) technology, it converts AC power to clean, regulated DC at either 5V/2A or 12V/1A — making it a versatile choice for DIY electronics, embedded projects, LED lighting drivers, speaker systems, set-top boxes, and more.

Key Features

• Wide Input Range: Accepts AC 100V–240V, compatible with global electrical standards worldwide.
• Isolated Design: Provides electrical isolation between input and output for enhanced safety and reduced interference.
• High Reliability: Excellent anti-interference performance with low operating temperature for extended service life.
• Strong Insulation: High electrical strength and superior insulation performance throughout the board.
• 100% Burn-In Tested: Full-load, high-temperature aging test run for 24 hours using brand-new circuit boards and components.
• Flexible Installation: Can be soldered directly via input/output pins onto a PCB, or mounted using the onboard mounting holes.
• Compact Bare-Board Format: Ideal for integration into custom enclosures or DIY electronic builds.

Technical Specifications

Compatible Applications

This switching power module is suitable for a wide range of electronics and appliances, including:

• LED lighting fixtures and strips
• Speaker systems and audio equipment
• Set-top boxes and small televisions
• LCD displays and digital products
• Security cameras and CCTV equipment
• Communication equipment
• Electronic keyboards and game consoles
• Electronic instruments and computers

Installation Methods

1. Direct Solder: Solder the input and output pins directly onto your PCB for a secure, permanent connection.
2. Mounting Holes: Use the onboard mounting holes to mechanically fix the board into your project enclosure.

Made in Mainland China.

Looking for more electronics accessories and organizers? Check out our 10-Pack Silicone Cable Ties – Reusable Cord Organizers for keeping your wiring neat, or explore the Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand for your workspace setup.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What output voltage and current does this switching power supply module provide?

A: This isolated switching power module outputs DC 12V at 1A (12W). It accepts a universal AC input of 100V–240V, making it suitable for use in most countries worldwide.

Q: Can this power module be installed directly onto a PCB?

A: Yes. The module supports two installation methods: you can solder the input and output pins directly to your PCB, or use the built-in mounting holes to secure the board mechanically within an enclosure.

Q: What devices is this isolated power supply module compatible with?

A: This module is compatible with a wide variety of electronics, including LED lighting fixtures, speaker systems, set-top boxes, LCD displays, security equipment, communication devices, digital products, and more. Its compact bare-board design makes it ideal for DIY and embedded electronics projects.

Q: Has this power supply module been tested for quality?

A: Yes. Each unit is built from brand-new circuit boards and components, and undergoes a full-load, high-temperature 24-hour aging (burn-in) test to ensure long-term reliability and stable performance.
