HZ-8813 Flashlight Driver Board – 3-Mode & 5-Mode Control Circuit

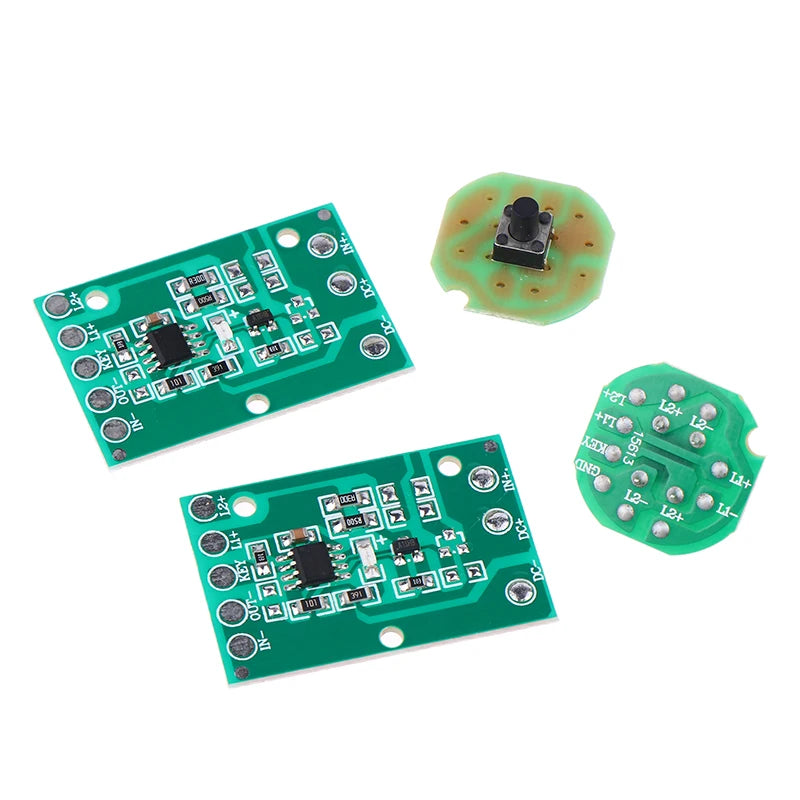

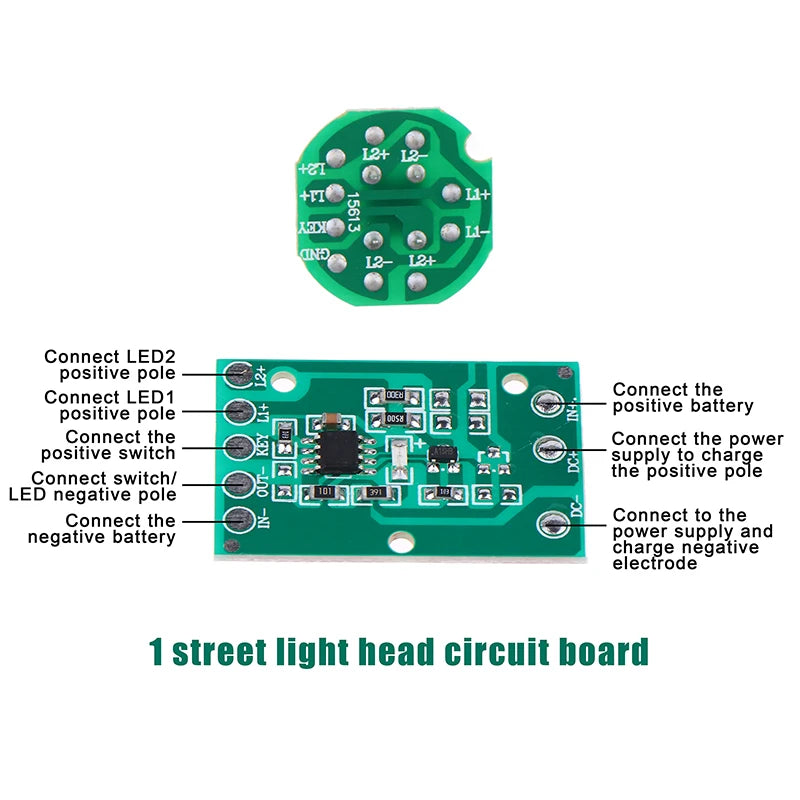

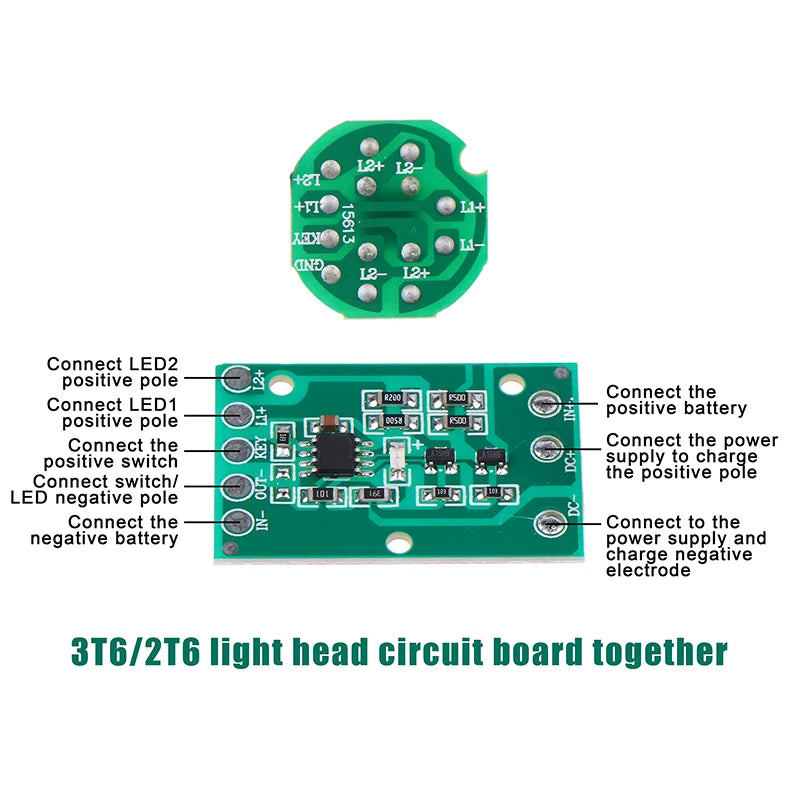

Upgrade or repair your T6, U2, or L2 LED flashlight with this high-quality HZ-8813 flashlight driver board. This compact green PCB delivers precise light output control with selectable 3-function or 5-function gear modes, giving you full command over brightness settings for your flashlight build or replacement project.
Key Features
- Compatible LEDs: Designed for T6, U2, and L2 high-output LED flashlight assemblies
- Multiple Modes: Choose between 3-function or 5-function gear configurations to suit your needs
- PCB Material: Durable green PCB board construction for reliable circuit performance

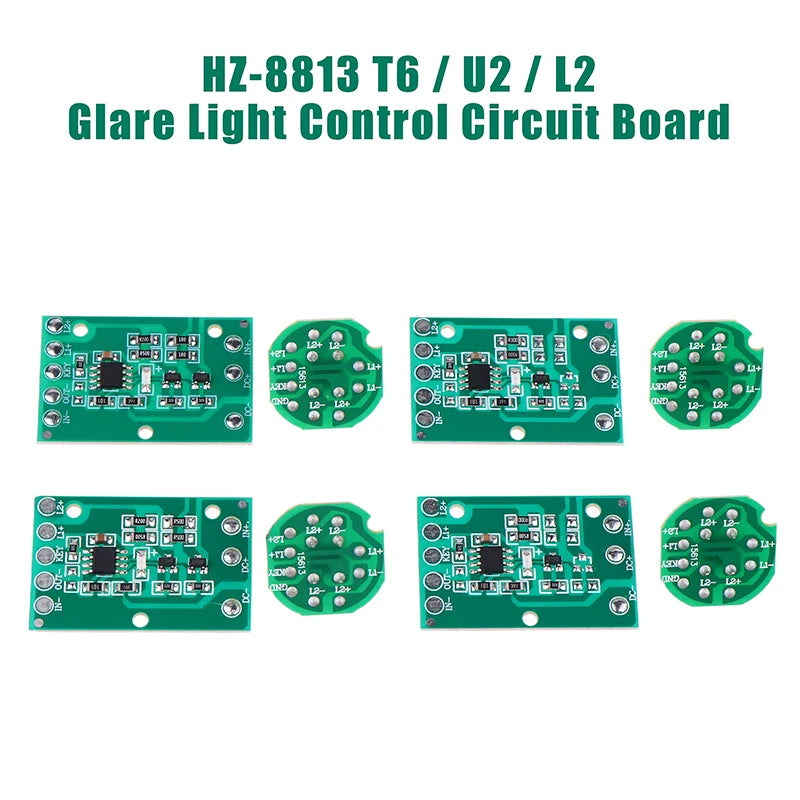

- Glare Light Control: Built-in control circuit manages LED drive current for consistent, stable output
- Brand New: Each unit is new and inspected for quality before shipping
- Package Contents: 1 x HZ-8813 driver board (PCB)
- Color: Green
- Made in Mainland China
What Is a Flashlight Driver Board?
A flashlight driver board (also called a control circuit board or electric plate) is the electronic brain of your LED flashlight. It regulates the current supplied to the LED, manages mode switching (such as high, medium, low, strobe, and SOS), and protects the LED from voltage spikes. The HZ-8813 is a popular replacement and upgrade driver widely used by flashlight enthusiasts and DIY repair technicians.
Specifications
| Model | HZ-8813 |
| Compatible LED Types | T6 / U2 / L2 |
| Function Modes | 3-Mode & 5-Mode (Gear selectable) |
| Material | PCB Board |
| Color | Green |
| Package Quantity | 1 Set |
| Origin | Mainland China |

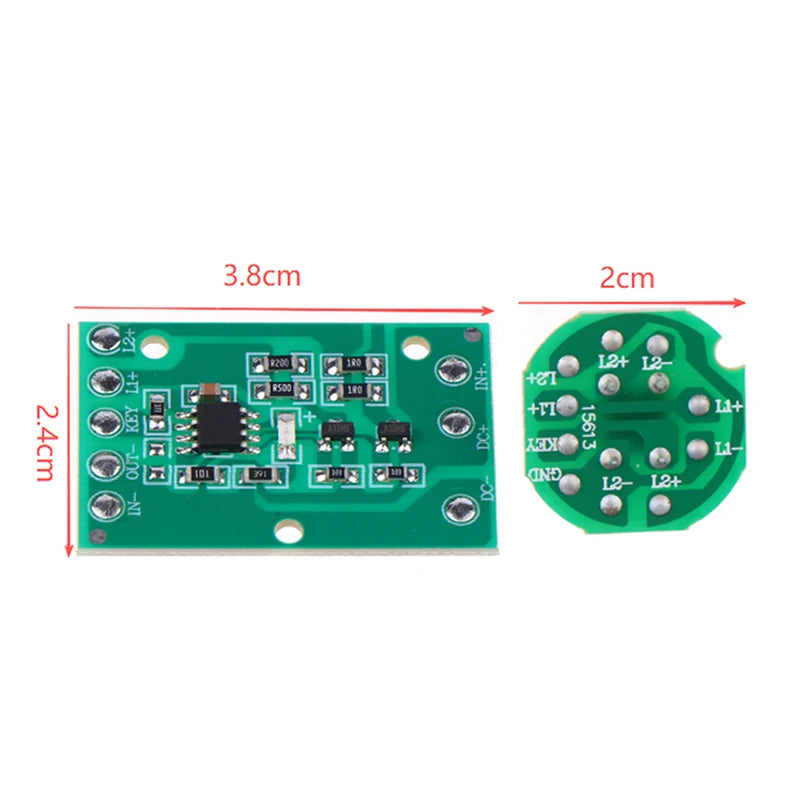

Note: Please allow 2–3% dimensional variance due to manual measurement. Actual product color may vary slightly from images due to differences in monitor display settings.
Related Products You May Like
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- Tactical Retractable Spring Rope Keychain Lanyard – Outdoor
- 10-Pack Silicone Cable Ties – Reusable Cord Organizers
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What flashlight types is the HZ-8813 driver board compatible with?
A: The HZ-8813 flashlight driver board is compatible with T6, U2, and L2 LED flashlight assemblies. It is commonly used as a replacement or upgrade circuit board in high-output LED torches and flashlights that use these popular LED emitter types.
Q: What is the difference between the 3-function and 5-function modes?
A: The 3-function mode typically cycles through High, Low, and Strobe settings, while the 5-function mode adds additional brightness levels or special modes such as SOS. The HZ-8813 board supports both configurations, making it versatile for different flashlight builds and user preferences.
Q: Is this driver board difficult to install in a flashlight?
A: Installation requires basic electronics knowledge, including soldering skills. It is intended for DIY flashlight enthusiasts, repair technicians, or hobbyists familiar with LED flashlight assemblies. Always ensure your flashlight is disassembled safely and that the board's specifications match your flashlight's requirements before installation.
