HW-300PRO Digital Paint Coating Thickness Gauge 0–2000µm
HW-300PRO Digital Paint Coating Thickness Gauge 0–2000µm

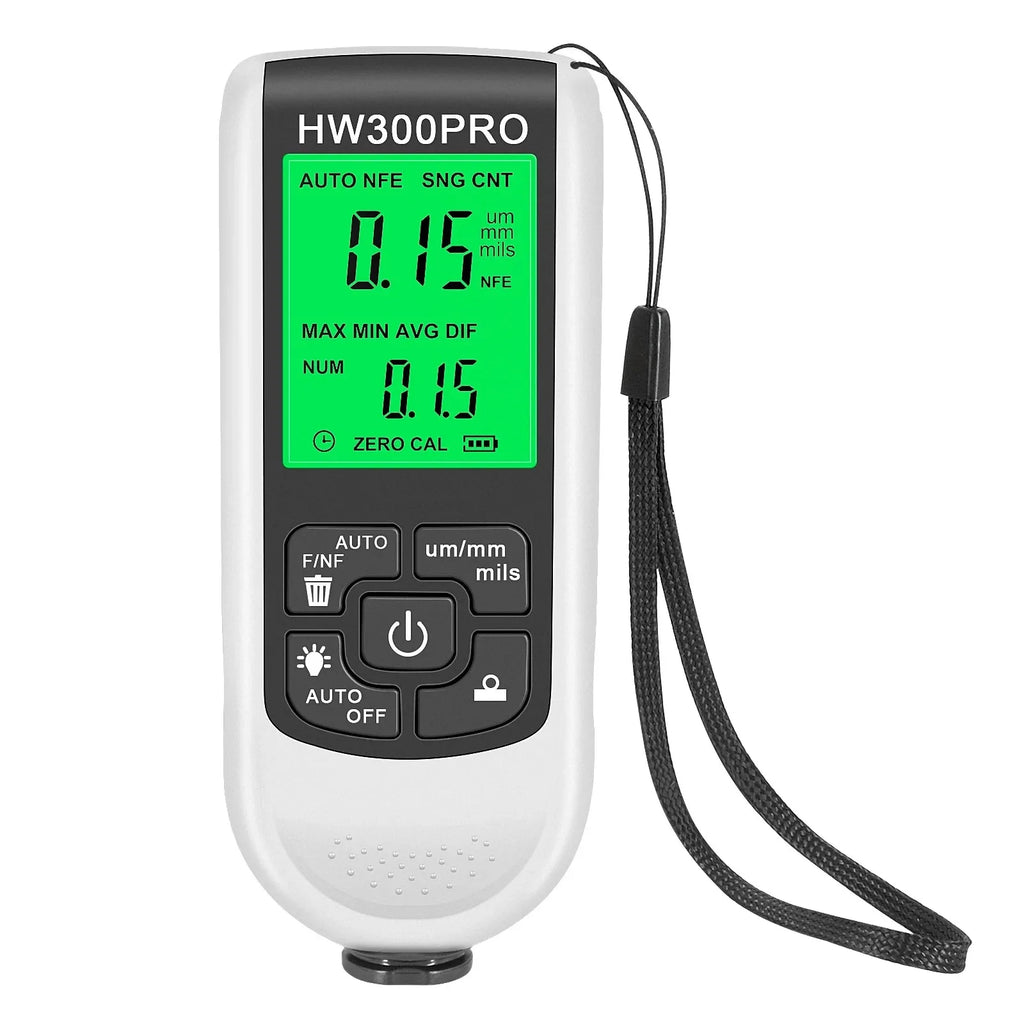

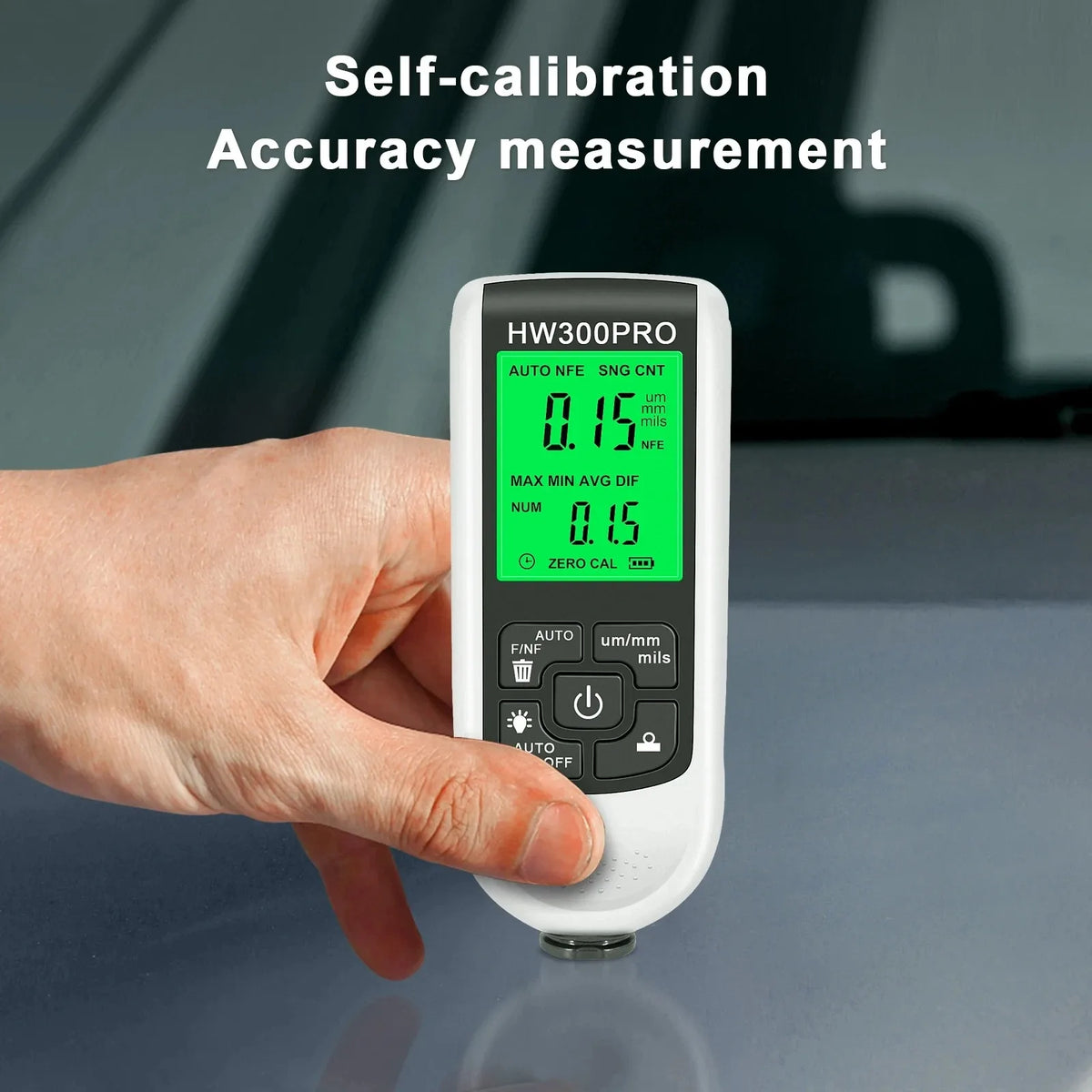

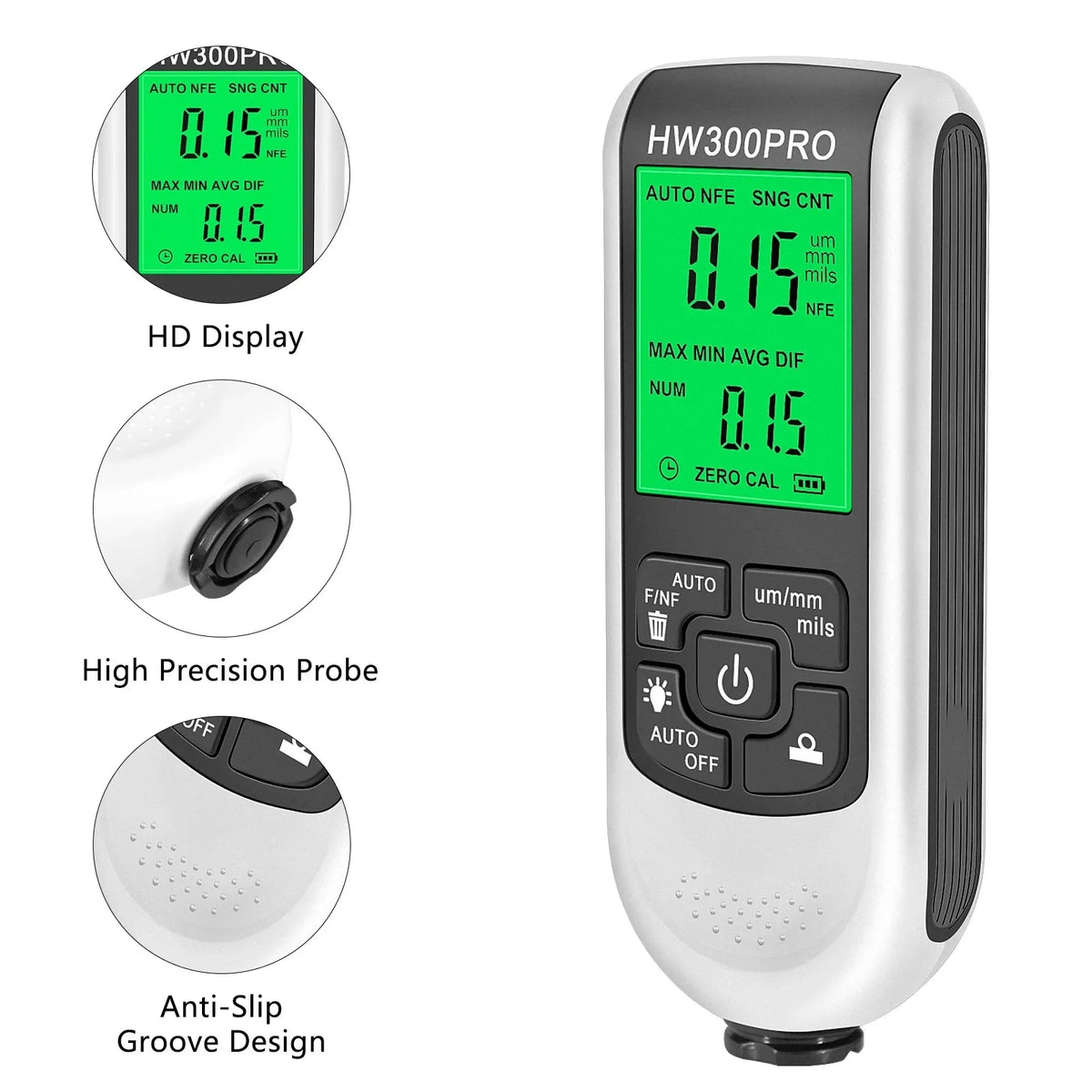

HW-300PRO Automatic Digital Paint Coating Thickness Gauge
Get precise, instant readings of any paint, enamel, chrome, or anodized coating on your vehicle or metal surface with the HW-300PRO Coating Thickness Gauge. Whether you're a car buyer checking for hidden bodywork, a detailer verifying coating depth, or an auto professional inspecting paint quality, this compact digital tester delivers professional-grade accuracy in the palm of your hand.
Why Choose the HW-300PRO?
- Ultra-Precision Resolution: 1µm resolution ensures highly accurate readings every time.
- Wide Measurement Range: 0–2000µm covers standard automotive paint, enamel, chrome plating, anodized coatings, and more.

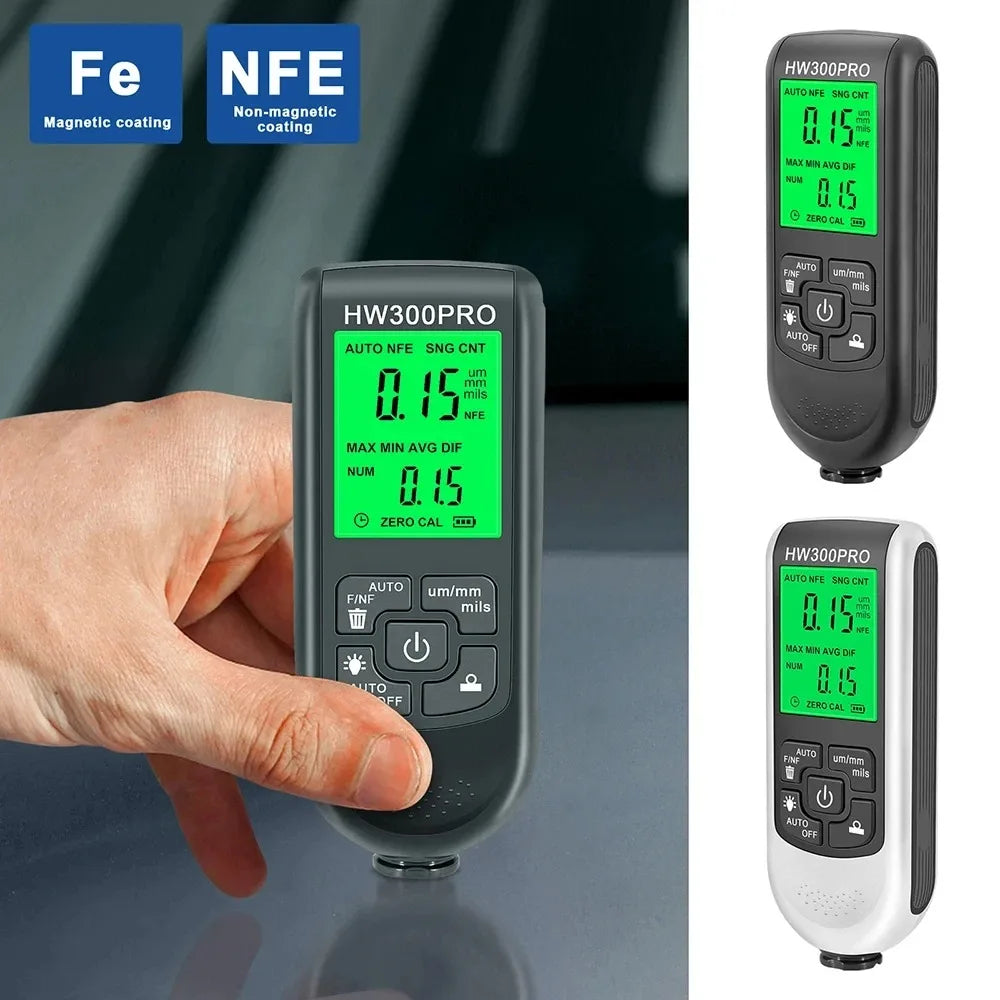

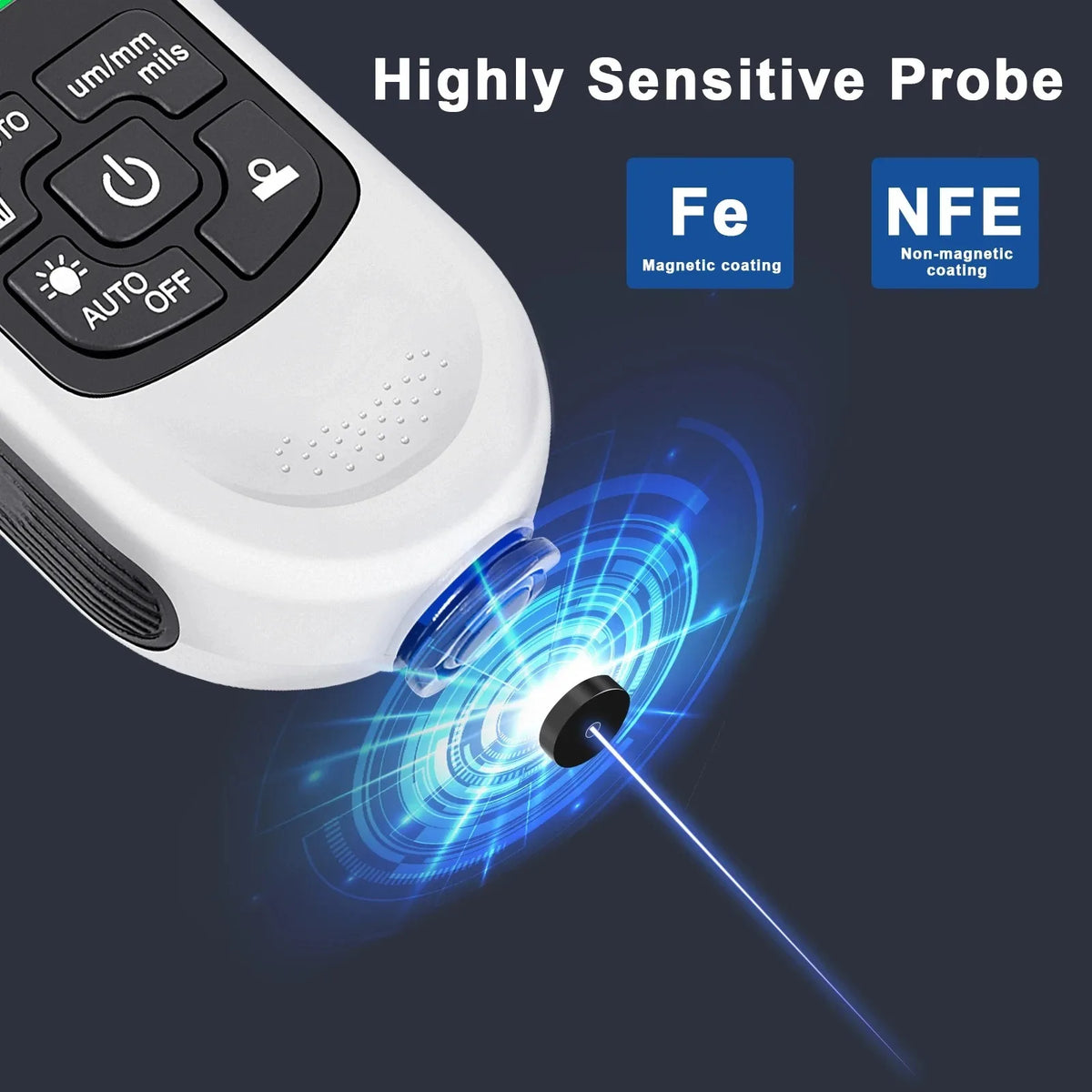

- Dual-Mode FE / NFE Detection: Automatically identifies whether the substrate is ferrous (steel/iron) or non-ferrous (aluminum, copper) — no manual switching required.
- Measurement Accuracy: ±(3% + 1µm) for reliable, consistent results.
- Auto-Off Function: Conserves battery life with an intelligent automatic shutdown feature.
- Battery Level Indicator: Always know your remaining power at a glance.
- Compact & Portable Design: Slim 122 × 50 × 22 mm ABS body fits easily in a pocket, toolbox, or glove compartment.
What Can It Measure?
- Automotive paint & clear coat on steel panels
- Paint on aluminum or copper surfaces
- Chrome and enamel plating on steel
- Anodized coatings on non-ferrous metals
Technical Specifications
| Model | HW-300PRO |
| Measuring Range | 0–2000 µm |
| Resolution | 1 µm |
| Accuracy | ±(3% + 1 µm) |
| Substrate Detection | Automatic FE / NFE |
| Material | ABS |

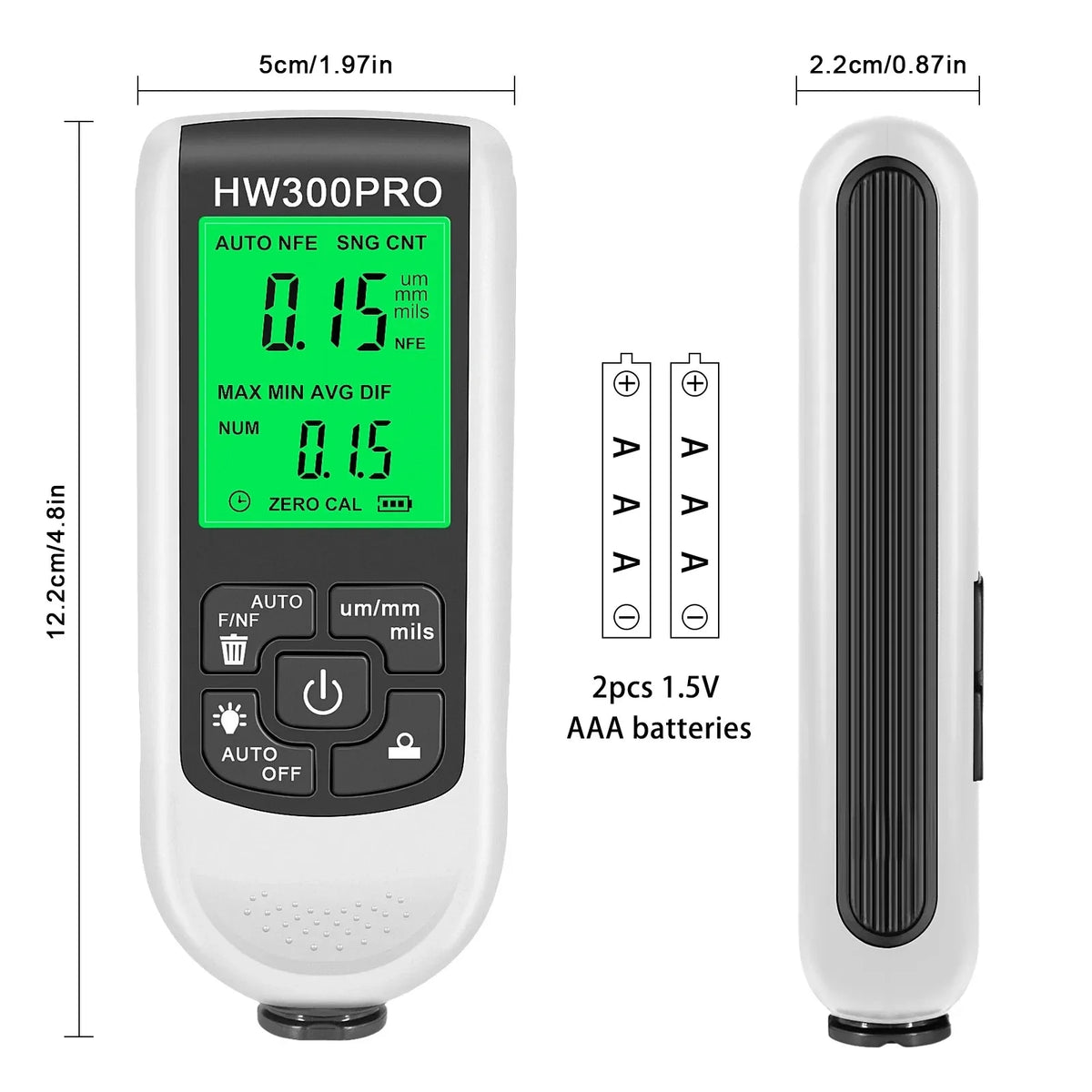

| Dimensions | 122 × 50 × 22 mm |
| Power Supply | 2 × 1.5V AAA batteries (not included) |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1 × HW-300PRO Coating Thickness Gauge
- 1 × Instruction Manual
- 1 × Calibration Sheet
Note: AAA batteries are not included.
You Might Also Like
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- Tactical Retractable Spring Rope Keychain Lanyard – Outdoor
- 10-Pack Silicone Cable Ties – Reusable Cord Organizers
Learn more: FuelEconomy.gov on vehicle maintenance
Frequently Asked Questions
Q: Does the HW-300PRO coating thickness gauge work on both steel and aluminum surfaces?
A: Yes! The HW-300PRO automatically detects whether the substrate is ferrous (steel/iron) or non-ferrous (aluminum, copper) using its built-in FE/NFE dual-mode sensor — no manual mode switching needed. It accurately measures paint, enamel, chrome, and anodized coatings on both types of surfaces.
Q: Do batteries come included with the HW-300PRO paint film thickness tester?
A: No, batteries are not included. The gauge is powered by 2 × 1.5V AAA batteries, which are widely available and sold separately. A battery level indicator on the display lets you know when power is running low.
Q: How accurate is the HW-300PRO digital paint thickness gauge?
A: The HW-300PRO offers a measurement accuracy of ±(3% + 1µm) with a 1µm ultra-precision resolution across a 0–2000µm range, making it suitable for professional automotive inspections, used-car evaluations, and detailing quality checks.
Q: Is a calibration sheet included, and how do I calibrate the gauge?
A: Yes, a calibration sheet is included in the box along with the instruction manual. Follow the step-by-step guide in the manual to calibrate the gauge against the included sheet before your first use to ensure the most accurate readings.
