See What's Hidden – HD 1080P Articulating Borescope with Built-In LCD Screen

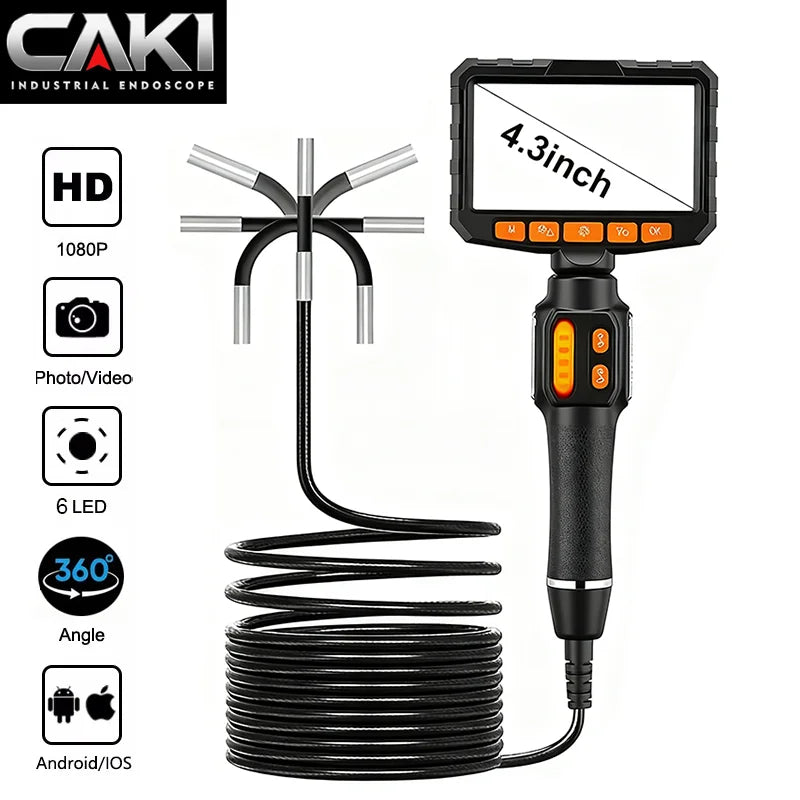

Take the guesswork out of hard-to-reach inspections. This professional-grade articulating borescope inspection camera by CAKI features a vivid 4.3-inch (or 5-inch) color LCD screen, a slim 6mm HD camera head, and two-way articulation — giving you full visual control in tight, confined spaces without disassembly. Whether you're checking automotive engines, HVAC pipelines, plumbing, or industrial machinery, this tool delivers crystal-clear 1080P imaging right in your hands. Made in Mainland China.
Key Features

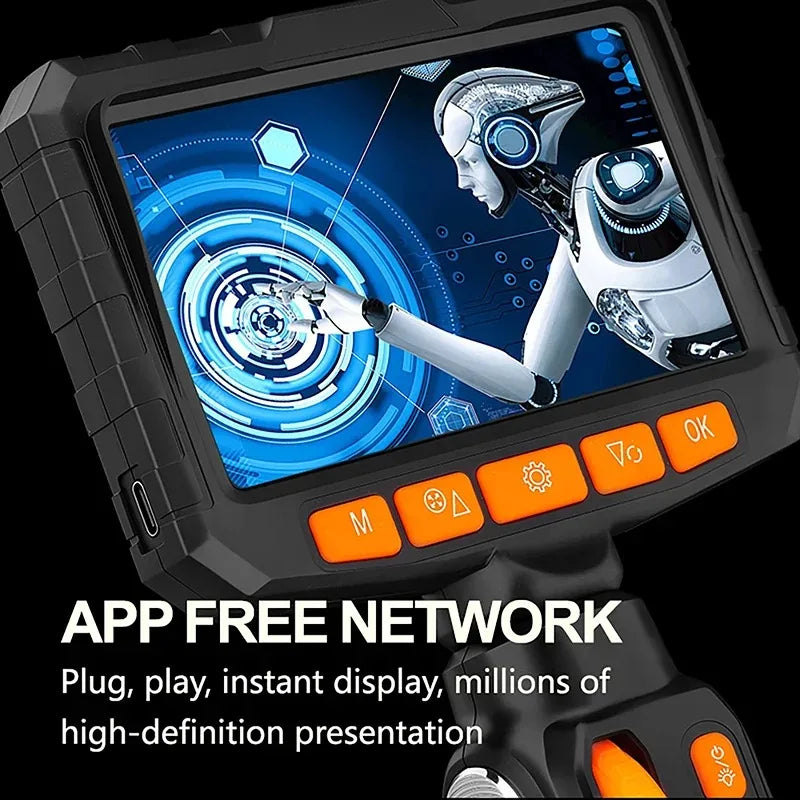

- Vivid Built-In LCD Display: The 4.3" / 5.0" color LCD monitor delivers wide-angle, true-to-life real-time images — no phone or tablet required. HD 1080×720P video and 1920×1080P photo resolution capture even the finest details.
- Two-Way Articulating Head: Simply rotate the control wheel to smoothly steer the camera tip in two directions, enabling comprehensive 360° coverage of pipes, cavities, and engine compartments with improved efficiency.

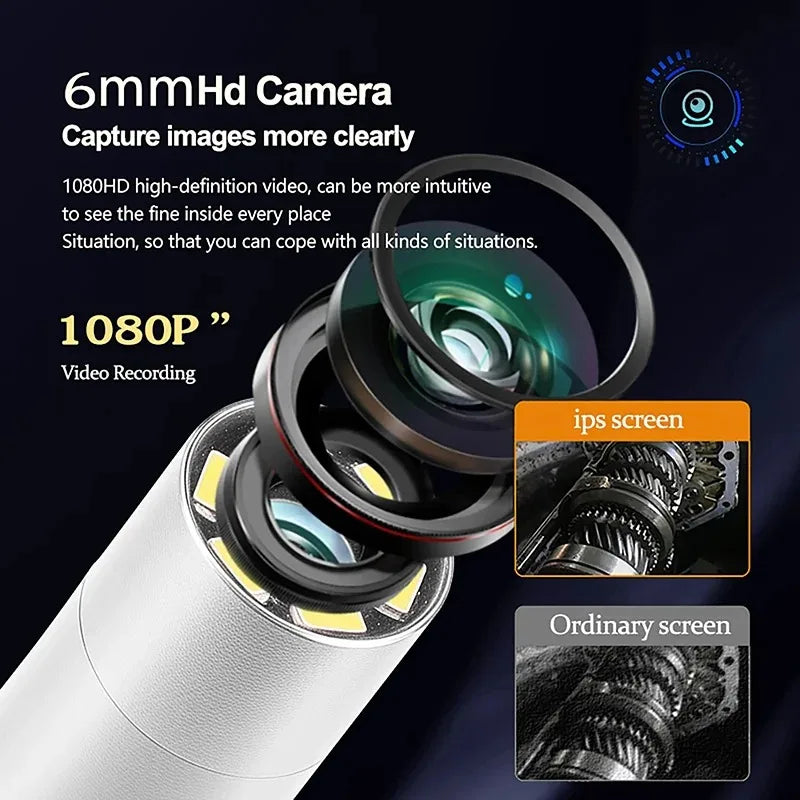

- 6 Adjustable LED Lights & IP67 Waterproof Cable: Six brightness-adjustable LEDs illuminate dark spaces, while the IP67-rated flexible rigid cable withstands moisture and bends to navigate tight passages. Slim 6mm (0.23") lens diameter fits where bulky tools can't.
- Long-Lasting Rechargeable Battery: A built-in 2600mAh battery delivers 3–5 hours of continuous operation on a single ~3-hour charge (DC 5V input), so you can power through a full workday on-site.
- Versatile Multi-Industry Use: Ideal for auto repair, HVAC system checks, pipeline and plumbing maintenance, construction inspections, electronic equipment diagnostics, ship & aircraft servicing, and DIY home maintenance.
Technical Specifications
| Camera Diameter | 6.0 mm |
| Screen Size | 4.3" / 5.0" Color LCD |
| Video Resolution | 1080 × 720P |
| Photo Resolution | 1920 × 1080P |
| LED Lights | 6 Adjustable LEDs |
| Focusing Distance | 1.18" – 3.93" (3cm – 10cm) |
| Cable Length Options | 1.0m / 1.5m / 2.0m |
| Waterproof Rating | IP67 (cable & camera head) |
| Battery Capacity | 2600mAh (3–5 hrs use) |
| Charge Time | ~3 hours (DC 5V) |
| Working Temperature | -10°C to 50°C |
| Wire Type | Hard Wire / Semi-Rigid |
| Certification | CE |
| Model Number | 346H |
| Origin | Made in Mainland China |
What's in the Box
- 1× Articulating Borescope Inspection Camera (with LCD screen)
- 1× Semi-Rigid Probe Cable (choice of 1.0m / 1.5m / 2.0m)
- 1× USB Charging Cable
- 1× User Manual
Perfect For
Car engines, vents, HVAC systems, sewer and water pipelines, ceiling and wall cavities, electronic equipment, construction sites, ship & aircraft servicing, parts assembly, and general home maintenance — anywhere a direct line of sight is impossible.
Related Tools You May Like
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- Tactical Retractable Spring Rope Keychain Lanyard – Outdoor
- Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does this borescope inspection camera require a smartphone or tablet to operate?
A: No — this borescope has a self-contained 4.3" or 5.0" color LCD screen built directly into the handheld unit. You can view, capture photos, and record video without connecting to any external device.
Q: Is the camera head waterproof, and can it be used inside wet pipes?
A: Yes. The camera head and flexible cable carry an IP67 waterproof rating, meaning they can be submerged in water up to 1 meter deep for short periods. This makes the borescope well-suited for plumbing, drainage, and wet industrial environments.
Q: What cable lengths are available, and can I use it in tight automotive spaces?
A: The semi-rigid probe cable is available in 1.0m, 1.5m, and 2.0m options. The slim 6mm camera diameter and two-way articulating head allow the camera to navigate engine bays, air conditioning ducts, and narrow automotive cavities with ease.
Q: How long does the battery last and how do I recharge it?
A: The built-in 2600mAh rechargeable battery provides approximately 3–5 hours of continuous use. Recharging takes about 3 hours using the included USB cable with a standard DC 5V power source.
