DIN Rail Surge Protective Device – 35mm Mount, Low Voltage SPD

$46.54 $58.34

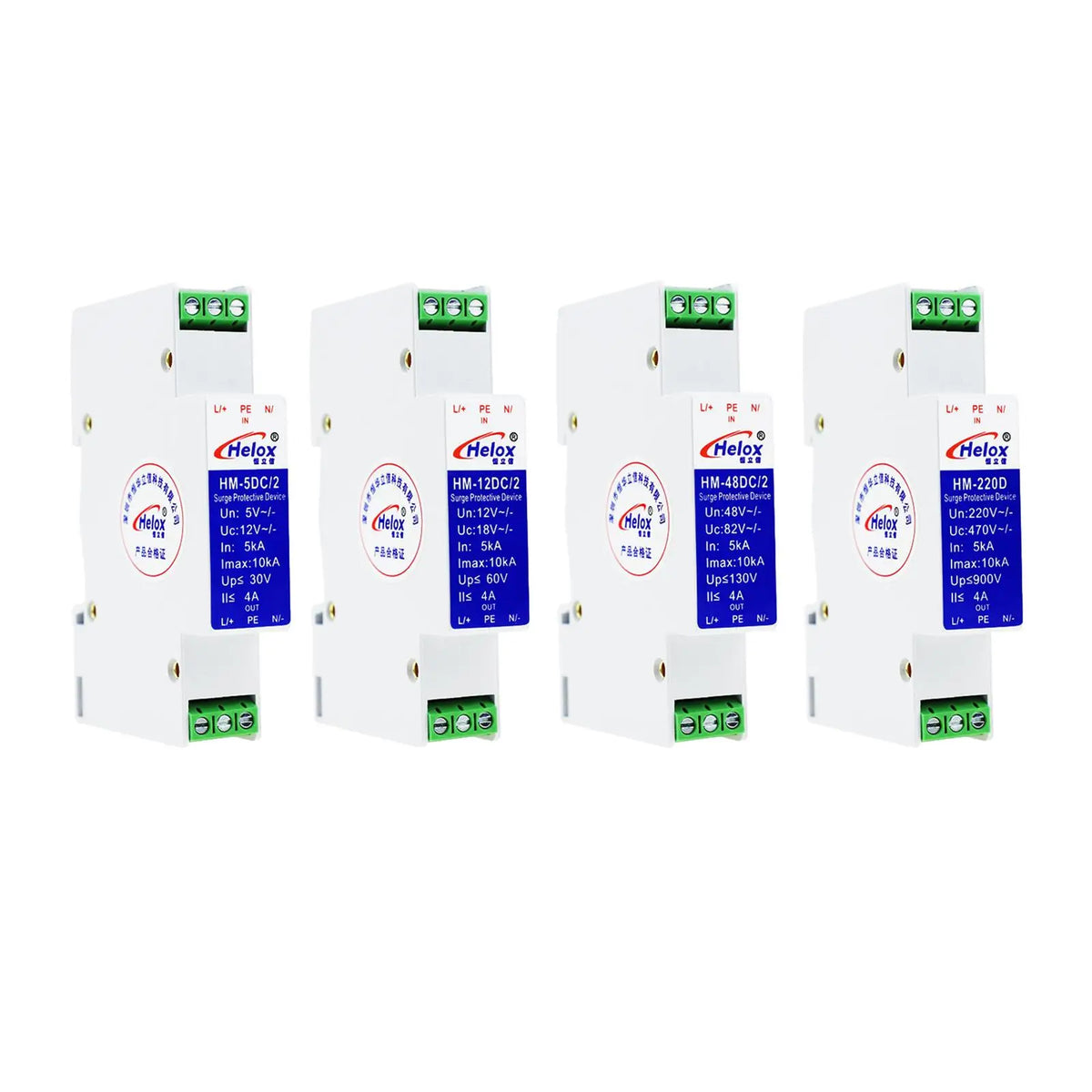

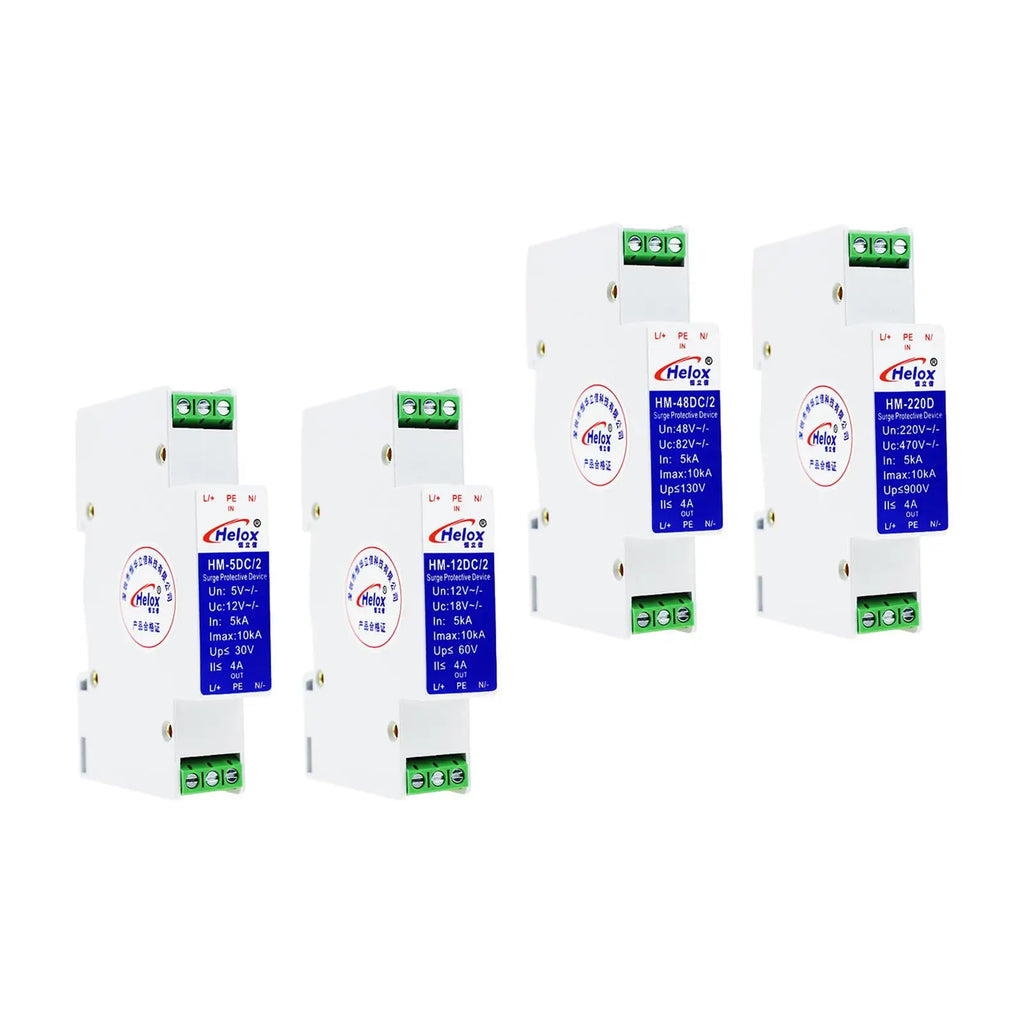

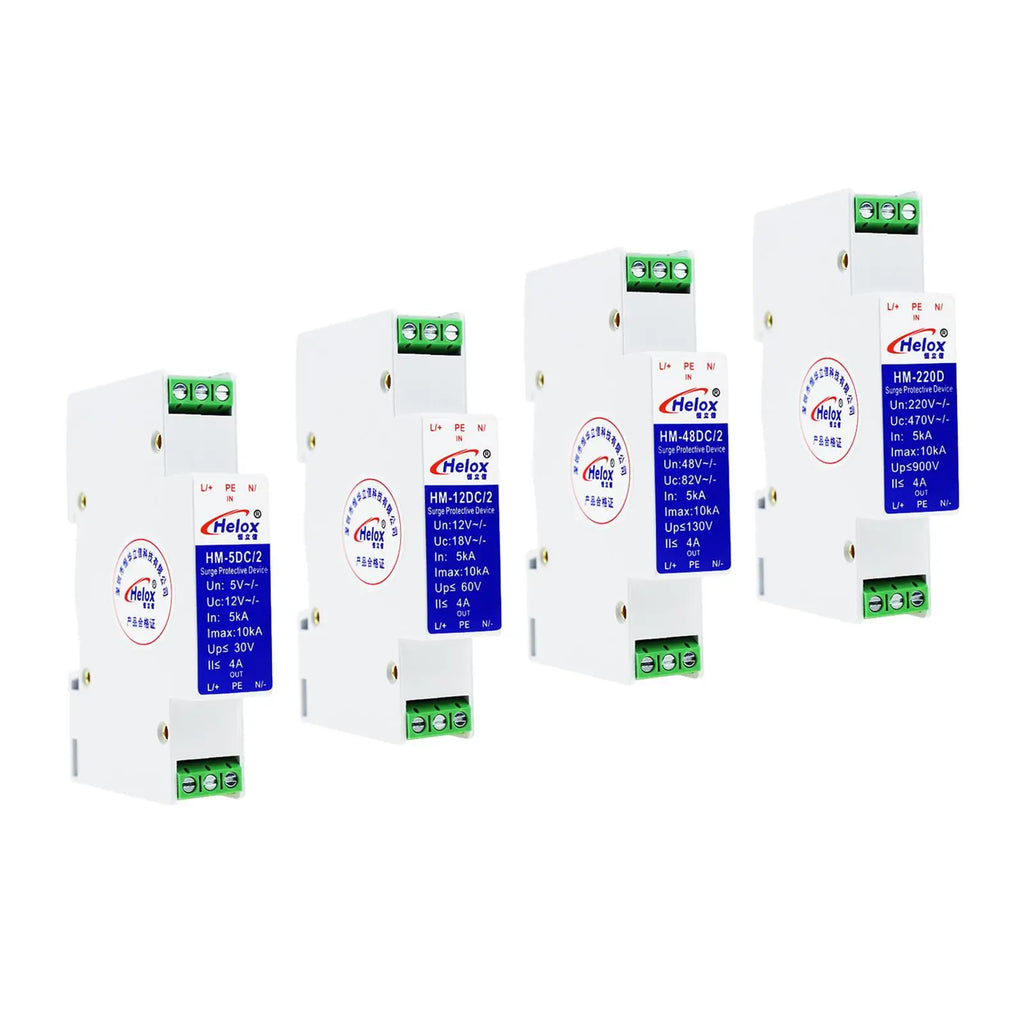

DIN Rail Surge Protective Device – 35mm Mount

Keep your electrical system and connected appliances safe from unexpected voltage spikes and lightning-induced surges. This compact, mini-sized Surge Protective Device (SPD) mounts directly onto a standard 35mm DIN rail inside your distribution box, working seamlessly alongside your circuit breakers for comprehensive voltage surge protection.

Key Features

Stable, Reliable Performance: Built from precision electronic components, this surge arrester device delivers consistent, dependable protection for your electrical circuits and appliances.
Excellent Electrical Conductivity: Features copper fittings for superior electrical conductivity, ensuring minimal resistance and optimal surge-diverting performance.
Easy DIN Rail Installation: Designed for quick, tool-free snap-on installation onto standard 35mm guide rails — compatible with most distribution boxes and miniature circuit breaker (MCB) setups.
Flame-Retardant Housing: The outer shell is crafted from high-quality flame-retardant material, meeting safety standards and providing added peace of mind.
Wide Application: Protects entire electrical systems and connected electrical appliances from thunder-induced surges and instantaneous overvoltage events.
Low Voltage Rated: Suitable for low-voltage circuits (below 50V AC or 75V DC), ideal for household and light commercial distribution panels.

Specifications

Type: Mini Surge Protective Device (SPD)
Mounting: Standard 35mm DIN Rail
Voltage Range: Low Voltage — Below 50V AC or 75V DC
Material: Copper fittings; Flame-retardant shell

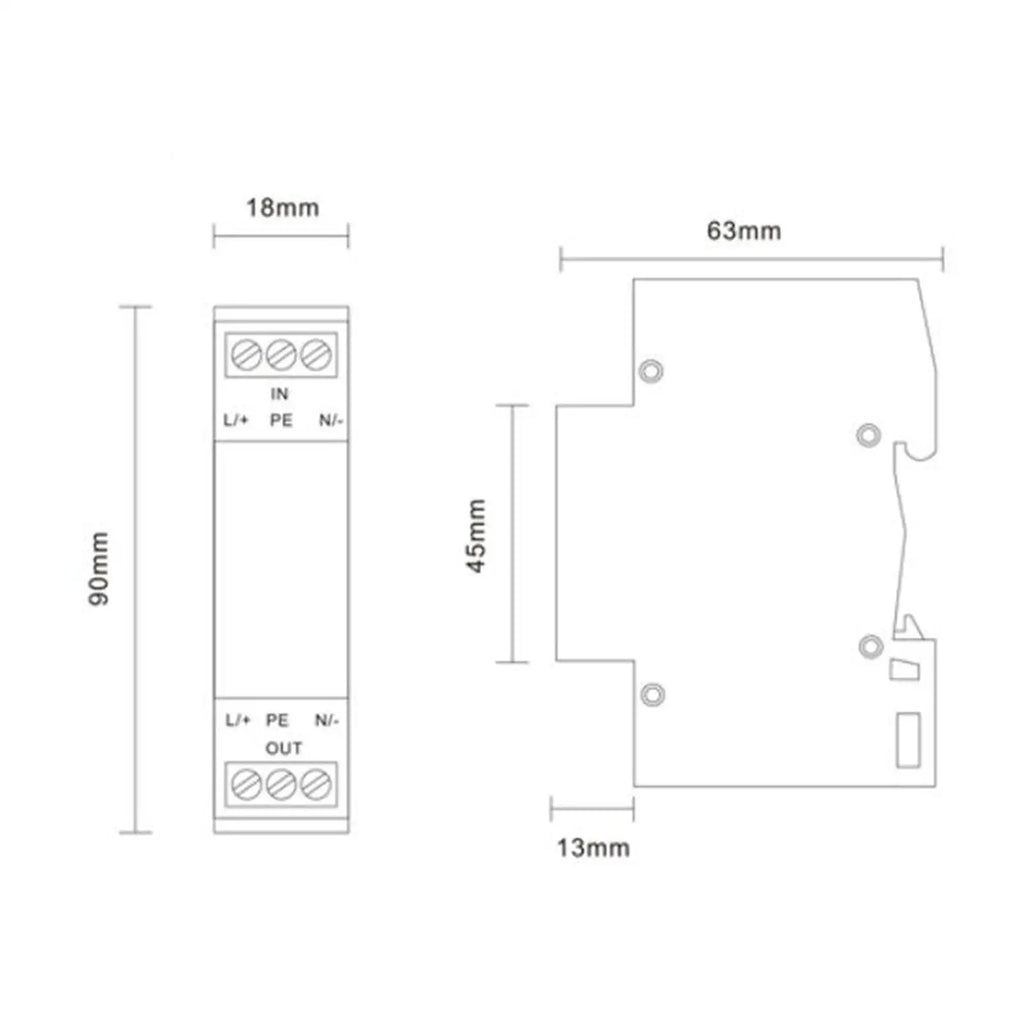

Dimensions: 9 cm × 6.3 cm × 1.8 cm (3.54" × 2.48" × 0.71")
Battery Required: No
Wireless: No
Country of Origin: Made in China

Package Contents

1 × Surge Protective Device (SPD)

Note: Please allow for slight dimensional variation due to manual measurement. Colour may vary slightly between monitors.

Frequently Asked Questions

Q: What is a DIN rail surge protective device and how does it work?

A: A DIN rail surge protective device (SPD) is an electrical component that mounts on a standard 35mm DIN rail inside a distribution or breaker box. It works by detecting abnormal voltage spikes — such as those caused by lightning or sudden power fluctuations — and diverting the excess voltage safely away from your circuits and connected appliances, helping to maintain stable electrical performance.

Q: Is this surge protective device compatible with standard circuit breaker panels?

A: Yes. This mini SPD is designed to snap directly onto a standard 35mm DIN rail and is intended for use alongside miniature circuit breakers (MCBs) in most residential and light-commercial distribution boxes. No special tools are required for installation.

Q: What size is this surge protective device?

A: The device measures 9 cm × 6.3 cm × 1.8 cm (approximately 3.54" × 2.48" × 0.71"), making it a compact, mini-profile unit that fits neatly within standard distribution enclosures without taking up excessive space.

Q: What type of circuits is this device rated for?

A: This SPD is rated for low-voltage applications — specifically circuits below 50V AC or 75V DC — making it well-suited for typical household and light commercial electrical distribution panels.
