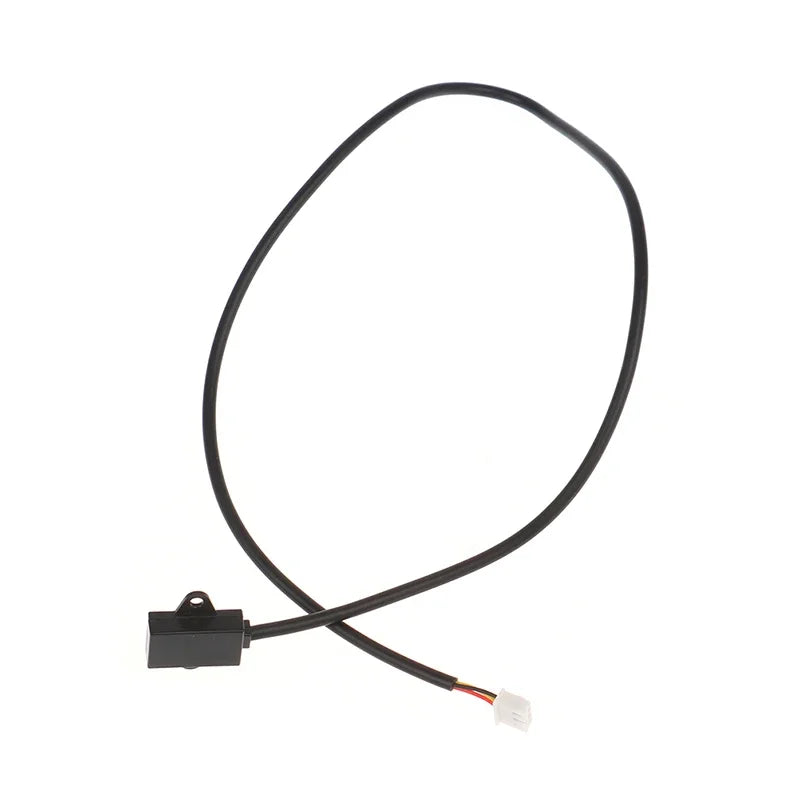

Non-Contact Capacitive Liquid Level Sensor with Switch Controller
Monitor water and liquid levels accurately — without any direct contact with the liquid. This compact capacitive liquid level sensor works through plastic tank walls to detect fill levels, triggering alerts when a container runs low or reaches capacity. Ideal for DIY electronics projects, smart appliances, and automated dispensing systems.
Key Features
- Non-Contact Detection: Senses liquid levels through the outer wall of plastic tanks — no probes submerged, no corrosion risk.
- Wide Voltage Compatibility: Operates at 3.3V–5V, making it compatible with Arduino, Raspberry Pi, and most microcontroller platforms.
- Built-In Switch Controller: Integrated switch output for easy low-level or full-level alerts — perfect for water shortage or full-tank reminders.
- Sheathed Wire Connections: Color-coded for easy wiring — Red (positive), Black (negative), Yellow (signal).
- Versatile Applications: Suitable for hand sanitizer dispensers, water dispensers, aroma diffusers, aquariums, and more.
- Use in Dry Environments: Designed for dry, moderate-temperature environments for optimal performance and longevity.
Specifications
| Product Name | Capacitive Liquid Level Sensor |
| Operating Voltage | 3.3V – 5V |
| Wire Type | Sheathed Wire (Red / Black / Yellow) |
| Detection Method | Non-contact, capacitive through plastic wall |
| Function | Water shortage reminder / Full water reminder |
| Compatible Tanks | Plastic water tanks (does NOT detect pure alcohol or gas) |
| Environment | Dry, avoid high-temperature conditions |
| Package Includes | 1 × Capacitive Liquid Level Sensor |
| Country of Origin | Made in China |
Wiring Guide
- 🔴 Red Wire — Positive (VCC)
- ⚫ Black Wire — Negative (GND)
- 🟡 Yellow Wire — Signal Output
Important Notes
- This sensor must be used close to the outside surface of a plastic water tank.
- It cannot detect pure alcohol or gasoline.
- Use only in dry environments; avoid high temperatures.
- Due to manual measurement, please allow a tolerance of 1–3 mm.
- Actual product color may vary slightly from images due to monitor display differences.
You May Also Like
- 10-Pack Silicone Cable Ties – Reusable Cord Organizers
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Can this capacitive liquid level sensor detect any type of liquid?
A: This sensor is designed to detect water and most water-based liquids through plastic tank walls. It cannot detect pure alcohol or gasoline. For best results, use it with standard water tanks or containers used in dispensers and diffusers.
Q: Does the sensor need to be submerged in the liquid to work?
A: No — that's one of its biggest advantages! This is a non-contact liquid level sensor, meaning it attaches to the outside surface of a plastic tank and detects the liquid level through the wall without any direct contact with the liquid.
Q: What microcontrollers is this sensor compatible with?
A: The sensor operates at 3.3V to 5V, making it compatible with popular platforms such as Arduino, Raspberry Pi, ESP8266, ESP32, and most other standard microcontrollers and development boards.
Q: How do I wire this sensor correctly?
A: Wiring is straightforward using the color-coded leads: connect the Red wire to VCC (positive), the Black wire to GND (negative), and the Yellow wire to your signal/input pin on your microcontroller or controller board.
