CAN Bus Decoder for Peugeot Citroën DS Android Head Unit

$110.62 $138.66

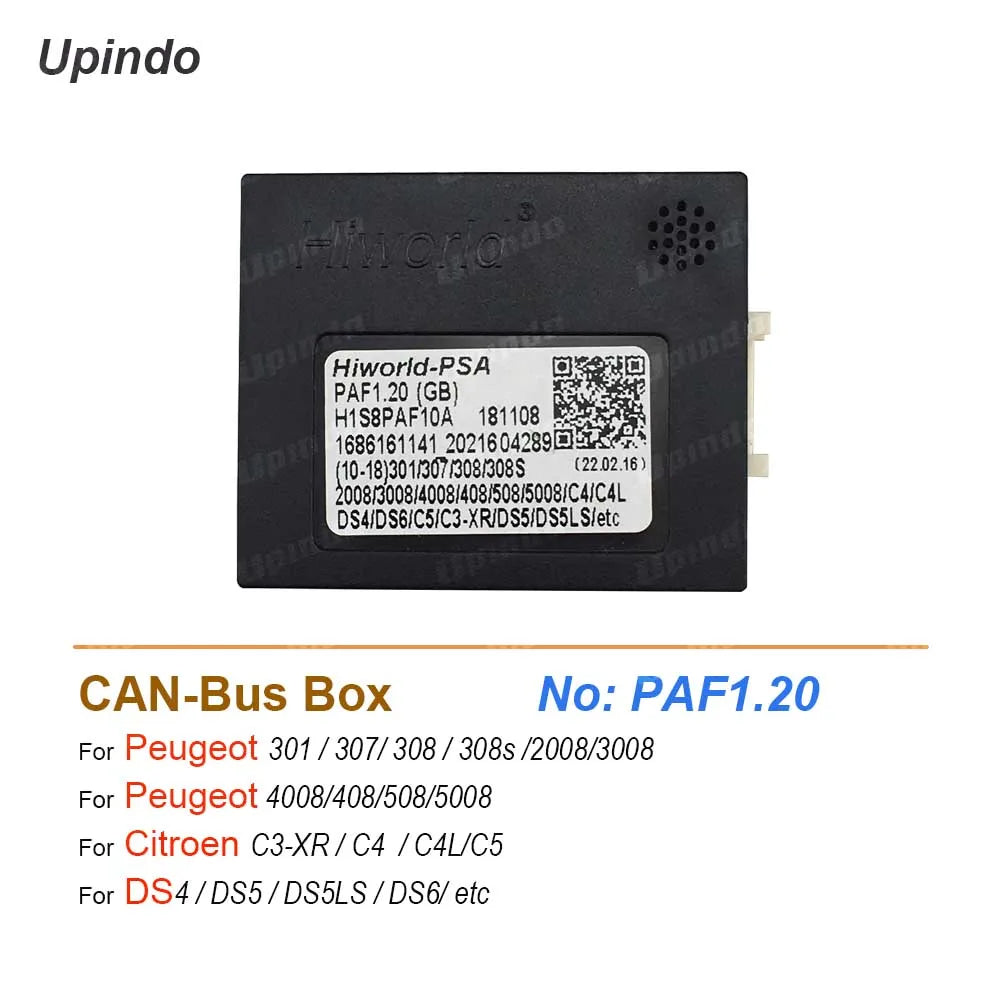

CAN Bus Decoder Adapter for Android Car Head Units – Peugeot, Citroën & DS

Upgrade your in-car entertainment without losing factory vehicle functions. This CAN Bus Decoder Adapter (Model: PAF1.20) by Upindo bridges your car's CAN Bus network to any compatible 7–10 inch Android head unit, enabling seamless communication between your new stereo and your vehicle's existing systems — including lighting signals, ACC, park detection, and reverse gear output.

Made in Mainland China.

⚠️ Important – Please Read Before Ordering

Check the compatibility list below before purchasing. If your car model and year are listed, you're good to go.
If your car is NOT listed, please contact us before ordering so we can confirm compatibility.
This decoder does not include cables. Follow the pin wiring guide carefully — incorrect wiring can damage the unit.
Before purchasing, access your Android radio's CAN Bus settings screen and confirm your car name is displayed.
Operating voltage: +9V to +16V. Voltages outside this range may damage the decoder.

Key Specifications

Model: PAF1.20
Interface: CANbus / UART (CAN to UART)
Socket: 16-pin connector (2.5mm pin pitch)
Operating Voltage: 9V – 16V DC (12V nominal)

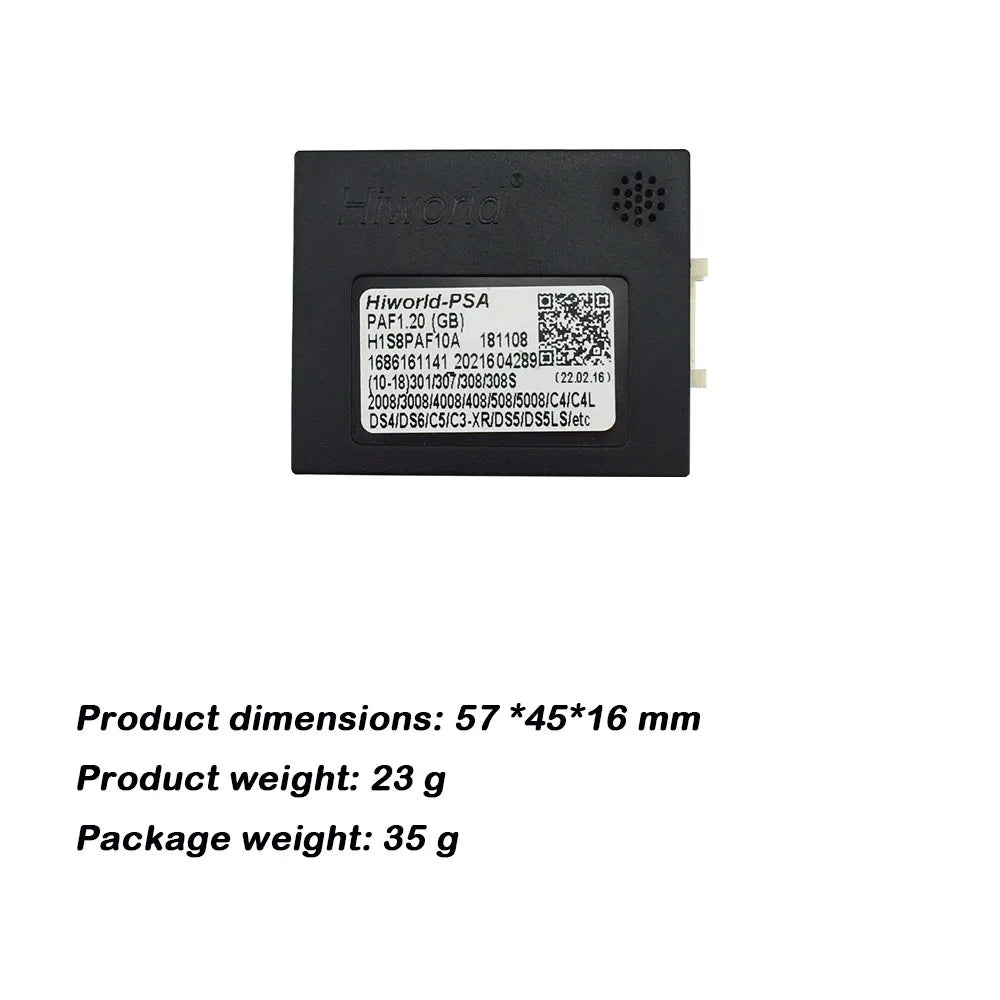

Dimensions: 55mm × 45mm × 17mm
Weight: 35g
Color: Black
PCB Included: Yes
Compatible Head Unit Size: 7, 8, 9, and 10 inch Android radios

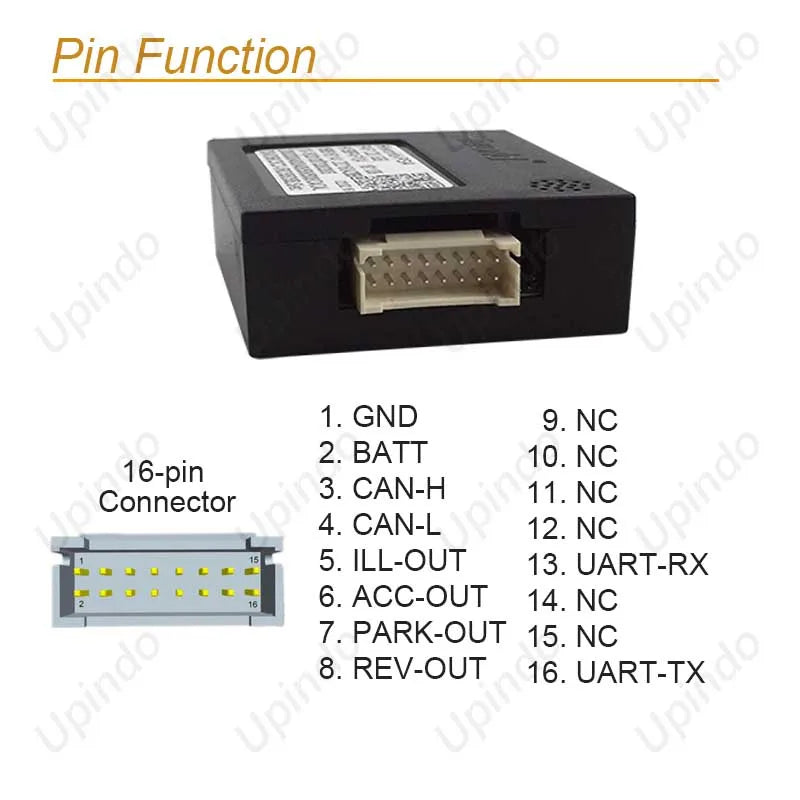

Pin Wiring Reference

Pin 1: Ground
Pin 2: Battery (+9V~16V)
Pin 3: CAN-H
Pin 4: CAN-L
Pin 5: ILL-OUT (Light control signal output)
Pin 6: ACC-OUT (ACC signal output)
Pin 7: PARK-OUT (Park signal output)
Pin 8: REV-OUT (Reverse gear output)
Pin 13: UART-RX (UART data input)
Pin 16: UART-TX (UART data output)
Pins 9, 10, 11, 12, 14, 15: NC (no connection required)

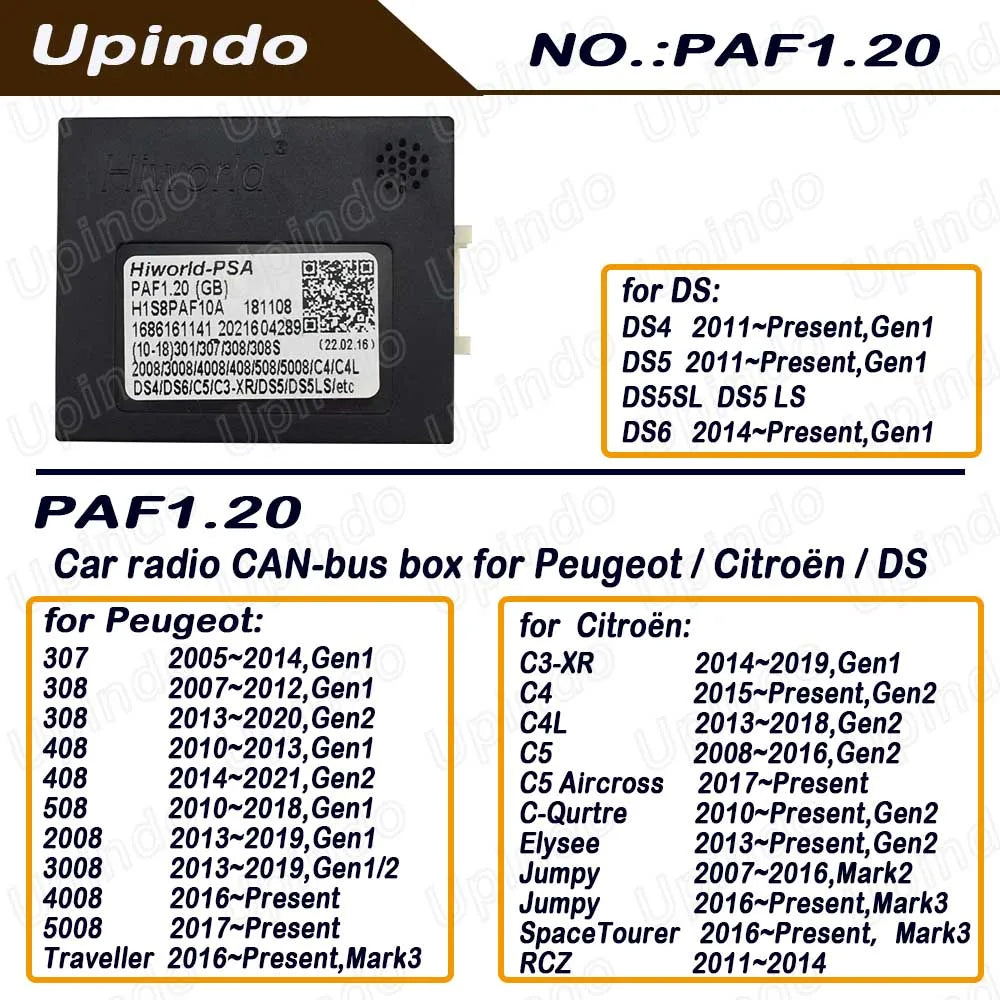

Compatible Vehicle Models

Peugeot:

307 – 2005~2014 (Gen1)
308 – 2007~2012 (Gen1) | 2013~2020 (Gen2)
408 – 2010~2013 (Gen1) | 2014~2021 (Gen2)
508 – 2010~2018 (Gen1)
2008 – 2013~2019 (Gen1)
3008 – 2013~2019 (Gen1/2)
4008 – 2016~Present
5008 – 2017~Present
Traveller – 2016~Present (Mark3)

Citroën:

C3-XR – 2014~2019 (Gen1)
C4 – 2015~Present (Gen2)
C4L – 2013~2018 (Gen2)
C5 – 2008~2016 (Gen2)
C5 Aircross – 2017~Present
C-Quatre – 2010~Present (Gen2)
Elysee – 2013~Present (Gen2)
Jumpy – 2007~2016 (Mark2) | 2016~Present (Mark3)
SpaceTourer – 2016~Present (Mark3)
RCZ – 2011~2014

DS:

DS4 – 2011~Present (Gen1)
DS5 / DS5 LS – 2011~Present (Gen1)
DS6 – 2014~Present (Gen1)

Setup Instructions (After Receiving)

Connect the CAN Bus decoder to your harness following the pin function guide above.
On your Android head unit, enter Settings → Factory Settings (common passwords: 3368, 1617, 8317, 8888 — if none work, contact your head unit seller).
Navigate to CAN Bus Settings and select the CAN Bus manufacturer: "Hiworld".
Select your correct car model and year from the list.
Save and reboot the head unit.

Frequently Asked Questions

Q: How do I confirm this CAN Bus decoder is compatible with my car?

A: Start by checking the full compatibility list above. If your car make, model, and year are listed, the decoder is designed to work with your vehicle. If your model is not listed, please contact us with your car's name, production year, location, and photos of your current radio socket — we'll verify compatibility before you order.

Q: Does this CAN Bus adapter come with wiring cables?

A: No, this decoder does not include any cables. You will need to wire it yourself using the 16-pin connector following the pin function guide in the product description. If you need a complete solution, we also offer CAN Bus adapters with cables included — contact us for options.

Q: Which Android head unit sizes is this decoder compatible with?

A: This CAN Bus decoder is compatible with 7-inch, 8-inch, 9-inch, and 10-inch Android car head units that support CAN Bus via UART interface. Before purchasing, verify that your Android radio's CAN Bus settings screen can display your vehicle's name.

Q: What should I do if my Android radio won't turn on or functions are abnormal after installation?

A: Check the following steps in order: (1) Ensure the car engine is running; (2) Verify all cable connections are secure; (3) Confirm CAN Bus is set up correctly in factory settings on your Android radio; (4) If your radio has no factory setting option, it may not support external CAN Bus decoders. Contact us if the issue persists after troubleshooting.
