CAKI 360° Articulating Borescope – 1080P HD Inspection Camera with 4.5" IPS Screen
Take the guesswork out of hard-to-reach inspections. The CAKI 346H Articulating Borescope delivers crystal-clear 1080P imagery through a slim 6mm probe, letting professionals and DIY enthusiasts alike inspect engines, pipelines, HVAC ducts, walls, and more — without disassembly. Made in Mainland China.
Key Features

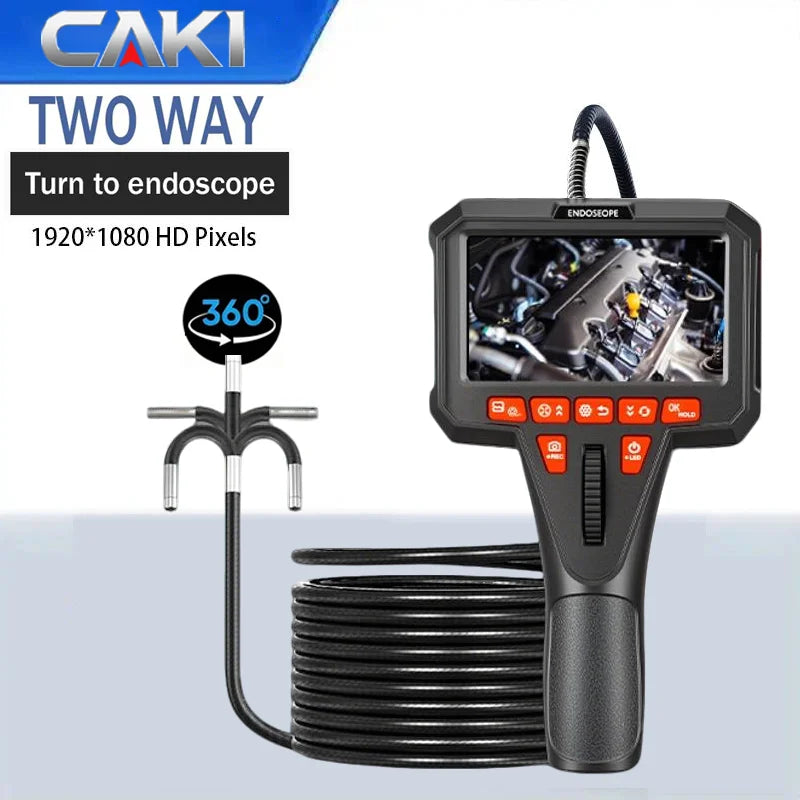

- Two-Way Articulating Probe: The 6mm probe bends and rotates effortlessly through tight, winding spaces. Simply rotate the control wheel to switch viewing angles and conduct thorough inspections from every direction — dramatically improving efficiency and accuracy.
- Crystal-Clear 4.5" IPS Display: The large 4.5-inch IPS LCD screen delivers vivid, lifelike real-time images with a wide horizontal viewing angle. 1920×1080 photo resolution and 1280×720 video resolution ensure you never miss even the finest detail.
- IP67 Semi-Rigid Waterproof Cable: The detachable, bendable semi-rigid cable is rated IP67 waterproof and dustproof — ready for harsh, wet, or dirty environments. Navigate confidently through pipes, vents, and confined spaces.
- Adjustable 6-LED Illumination: Six high-brightness LEDs light up dark cavities, and adjustable brightness control lets you dial in exactly the right amount of light for any inspection environment.
- Long-Lasting 2600mAh Battery: The built-in rechargeable lithium battery provides 3–5 hours of continuous operation on a single charge (~3 hours to recharge), keeping you productive through long job-site sessions.
- CE Certified, No High-Concern Chemicals: Designed and certified to meet CE standards for reliability and safety.
Technical Specifications
| Model | CAKI 346H |
| Probe Diameter | 6.0 mm |
| Articulation | Two-way articulating probe |
| Camera Sensor | 2.0 MP HD 1/6" CMOS |
| Photo Resolution | 1920 × 1080 pixels |
| Video Resolution | 1280 × 720 pixels |
| Screen | 4.5" IPS LCD |
| Field of View | 70° |
| Depth of Field | 2–10 cm (0.6–4 inches) |
| Illumination | 6 adjustable-brightness LEDs |
| Cable | Flexible gooseneck; available in 1.0m / 2.0m |
| Waterproof Rating | IP67 |
| Battery | 2600 mAh lithium (built-in rechargeable) |
| Battery Life | 3–5 hours |
| Charge Time | ~3 hours (DC 5V input) |
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Certification | CE |
| Country of Origin | Mainland China |
Versatile Applications
Whether you're a mechanic, plumber, HVAC technician, aviation maintenance professional, or a hands-on DIYer, this borescope handles it all:
- Automotive engine and cylinder inspection
- Pipeline and plumbing checks
- HVAC duct and ventilation system examination
- Aviation and aircraft component inspection
- Construction — walls, ceilings, cavities
- Electronic equipment and machinery maintenance
- Ship and industrial assembly inspection
You May Also Like
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand
- Tactical Retractable Spring Rope Keychain Lanyard – Outdoor
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the maximum bending angle of the articulating probe?
A: The CAKI 346H features a two-way articulating probe that can be steered by rotating the control wheel, allowing smooth directional changes to navigate tight bends and corners. The articulating design gives you comprehensive coverage in confined spaces such as engine cylinders, pipes, and ducts.
Q: Is the borescope camera waterproof, and can it be used in wet or dirty environments?
A: Yes. The probe cable is rated IP67 waterproof and dustproof, meaning it can handle wet, muddy, or otherwise harsh inspection environments. This makes it suitable for plumbing, outdoor pipeline inspection, and industrial settings where moisture or debris may be present.
Q: How long does the battery last, and how is the device charged?
A: The built-in 2600mAh lithium battery provides approximately 3–5 hours of continuous operation. It charges via a DC 5V input and takes roughly 3 hours to fully recharge, so you can keep working through demanding job-site schedules.
Q: Can this borescope record video and take photos?
A: Yes. The CAKI 346H captures still images at 1920×1080 resolution and records video at 1280×720 resolution. All footage is displayed in real time on the built-in 4.5-inch IPS LCD screen for immediate review.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
