ANENG SZ302 Auto-Range Digital Multimeter AC/DC NCV Tester
ANENG SZ302 Auto-Range Digital Multimeter AC/DC NCV Tester

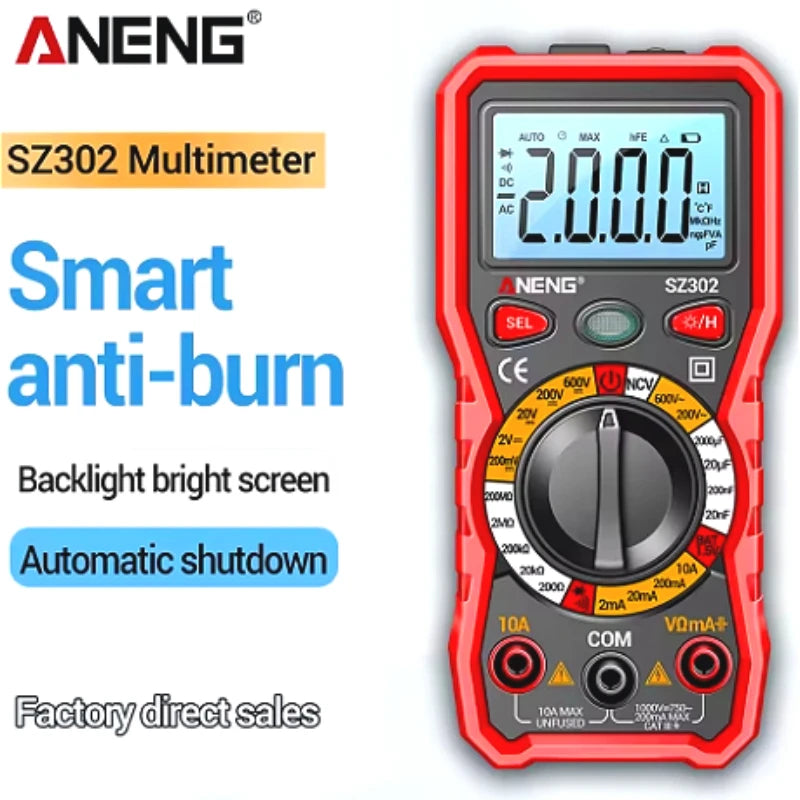

ANENG SZ302 Smart Auto-Range Digital Multimeter
The ANENG SZ302 Digital Multimeter is a versatile, handheld testing instrument built to international electrical safety standards. Whether you're a professional electrician, a DIY enthusiast, or a hobbyist, this auto-range multimeter delivers fast, accurate readings across a wide range of measurements — all from a single compact device.

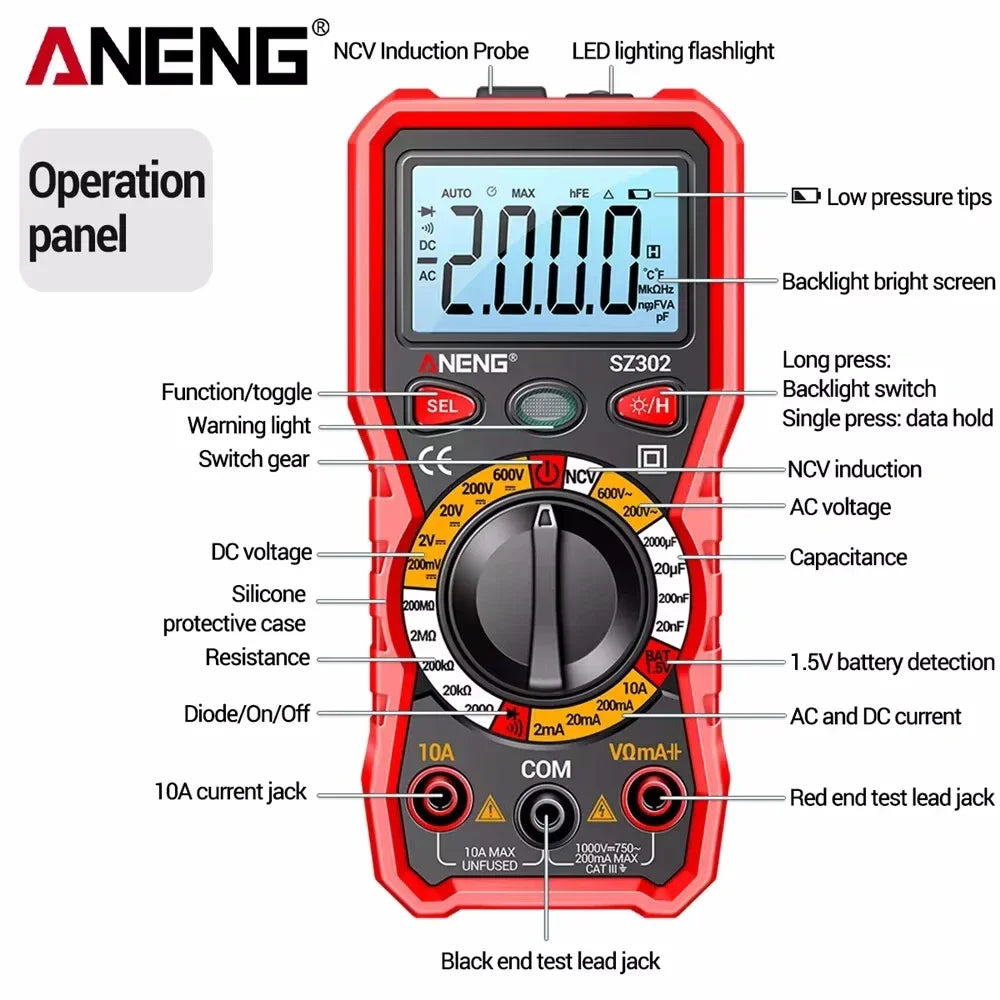

Key Features
- Auto-Range Operation: Automatically selects the correct measurement range, saving time and reducing setup errors.
- Multi-Function Testing: Measures AC/DC voltage (up to 600V), AC/DC current (up to 10A), resistance (up to 200MΩ), capacitance (up to 2000µF), diode continuity, and NCV (Non-Contact Voltage) detection.
- NCV Induction: Quickly detect live wires without direct contact using the built-in Non-Contact Voltage sensor.
- Bright Backlit Display: Large, easy-to-read LCD screen with backlighting for use in dimly lit areas.
- Built-In Flashlight: Integrated LED flashlight for working in dark spaces or tight enclosures.
- Data Hold Function: Freeze readings on screen for convenient note-taking or further analysis.
- Audible Continuity Beep: Instant audio feedback for diode and continuity tests.
- Auto Power-Off: Conserves battery life with automatic shut-down when not in use.
- Indicator Light: Visual signal indicator for quick status checks.
- 2000 Count Display Resolution: Provides clear and precise readings for all measurement modes.
- Durable Test Leads: PVC-insulated leads with brass tips for reliable conductivity and long-term use.
Technical Specifications
| Function | Range | Resolution | Accuracy |
|---|---|---|---|
| DC Voltage | 200mV / 2V / 20V / 200V / 600V | 0.1mV / 1mV / 10mV / 0.1V / 1V | ±(0.5%+5) |
| AC Voltage | 200V / 600V | 100mV / 1V | ±(1%+5) |
| DC Current | 2mA / 20mA / 200mA / 10A | 0.001mA / 0.01mA / 0.1mA / 0.01A | ±(1.5%+8) |
| AC Current | 2mA / 20mA / 200mA / 10A | 0.001mA / 0.01mA / 0.1mA / 0.01A | ±(1.5%+8) |
| Resistance | 200Ω / 20kΩ / 200kΩ / 2MΩ / 200MΩ | 0.1Ω / 10Ω / 100Ω / 1kΩ / 100kΩ | ±(4.0%+10) |
| Capacitance | 20nF / 200nF / 20µF / 2000µF | 0.01nF / 0.1nF / 0.01µF / 1µF | ±(5.0%+10) |
| Diode / Continuity | ✓ | On/Off beep | ✓ |
| NCV Detection | ✓ | — | ✓ |
| Max Count | 2000 counts | — | — |
| Battery | 2 × AA (1.5V) — not included | — | — |
| Test Lead Material | PVC / Brass | ||

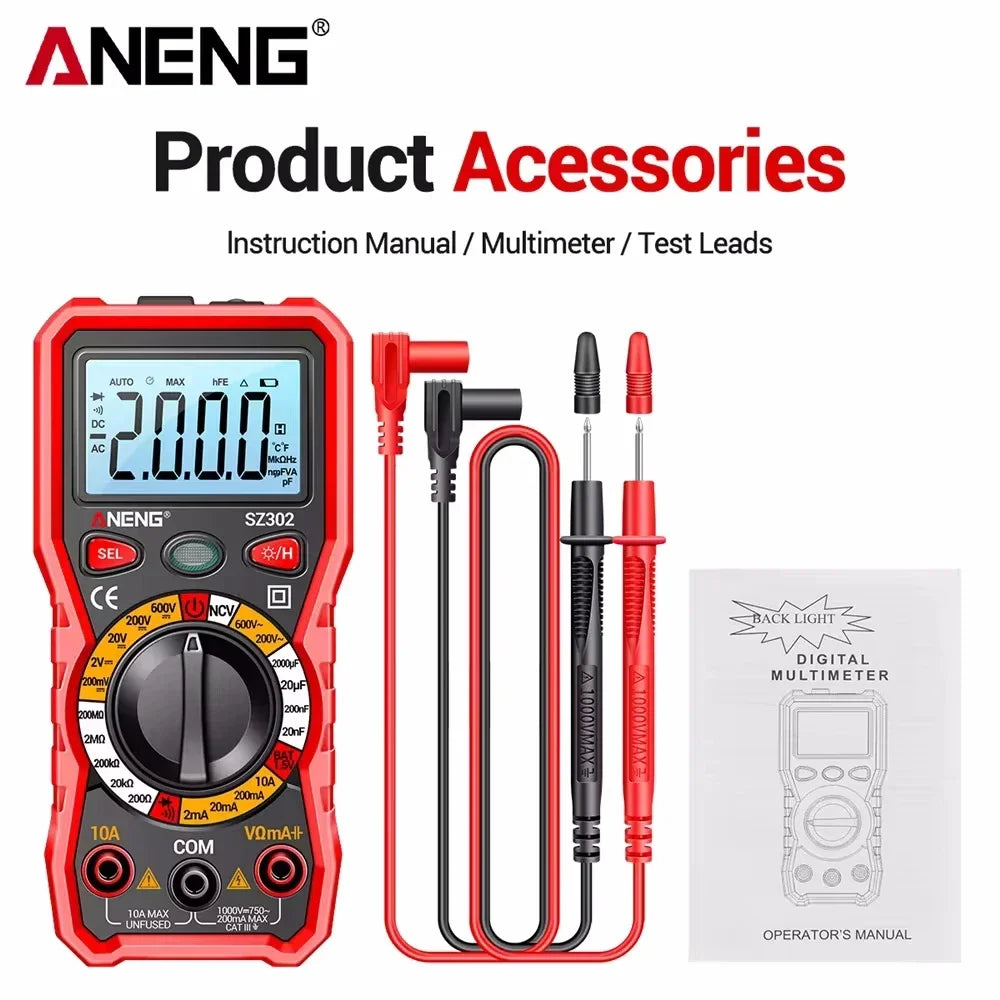

What's in the Box
- 1 × ANENG SZ302 Digital Multimeter (batteries not included)
- 1 × Set of Test Leads
- 1 × User Manual
Made in Mainland China.
You Might Also Like
- Screw Extractor Drill Bit Set 5 & 6 Pc – Carbon Steel
- 10-Pack Silicone Cable Ties – Reusable Cord Organizers
- Adjustable Label Roll Holder – 3D Printed Thermal Printer Stand
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Does the ANENG SZ302 digital multimeter come with batteries?
A: No — the SZ302 requires 2 × AA (1.5V) batteries, which are not included in the package. You'll need to supply your own AA batteries before first use.
Q: What is the NCV function on the SZ302 multimeter?
A: NCV stands for Non-Contact Voltage detection. It allows you to identify the presence of live AC voltage in wires, outlets, or cables without making direct electrical contact — a fast and convenient safety check for any electrical work.
Q: Can the SZ302 measure both AC and DC voltage and current?
A: Yes. The SZ302 measures both AC and DC voltage up to 600V, and AC and DC current up to 10A, making it suitable for a broad range of household, automotive, and electronics applications.
Q: What does the auto-range feature mean on this multimeter?
A: Auto-range means the meter automatically detects and selects the appropriate measurement range for the input signal. You don't need to manually dial in a range before testing — simply connect the leads and read the result.
