ANENG M107 Mini Digital Multimeter – 4000 Count Auto-Ranging AC/DC Tester

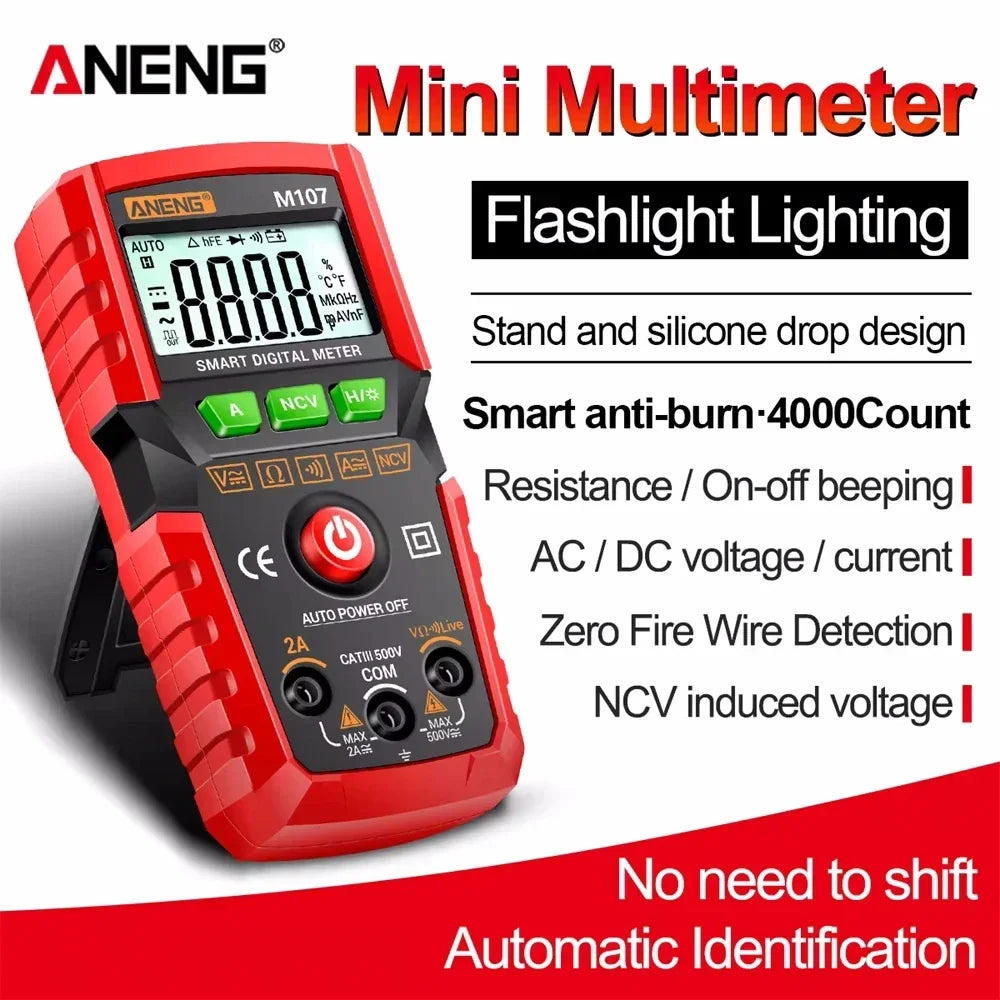

The ANENG M107 Mini Digital Multimeter is a compact, battery-powered auto-ranging meter built for electricians, hobbyists, students, and DIY enthusiasts who need fast, accurate electrical measurements on the go. With a crisp 4000-count LCD display, built-in backlight, flashlight, NCV detection, data hold, and auto power-off, this pocket-sized tester packs serious capability into a slim ABS/PVC body.
Made in Mainland China.
Key Features
- 4000-Count LCD Display – High-resolution readout for precise measurements

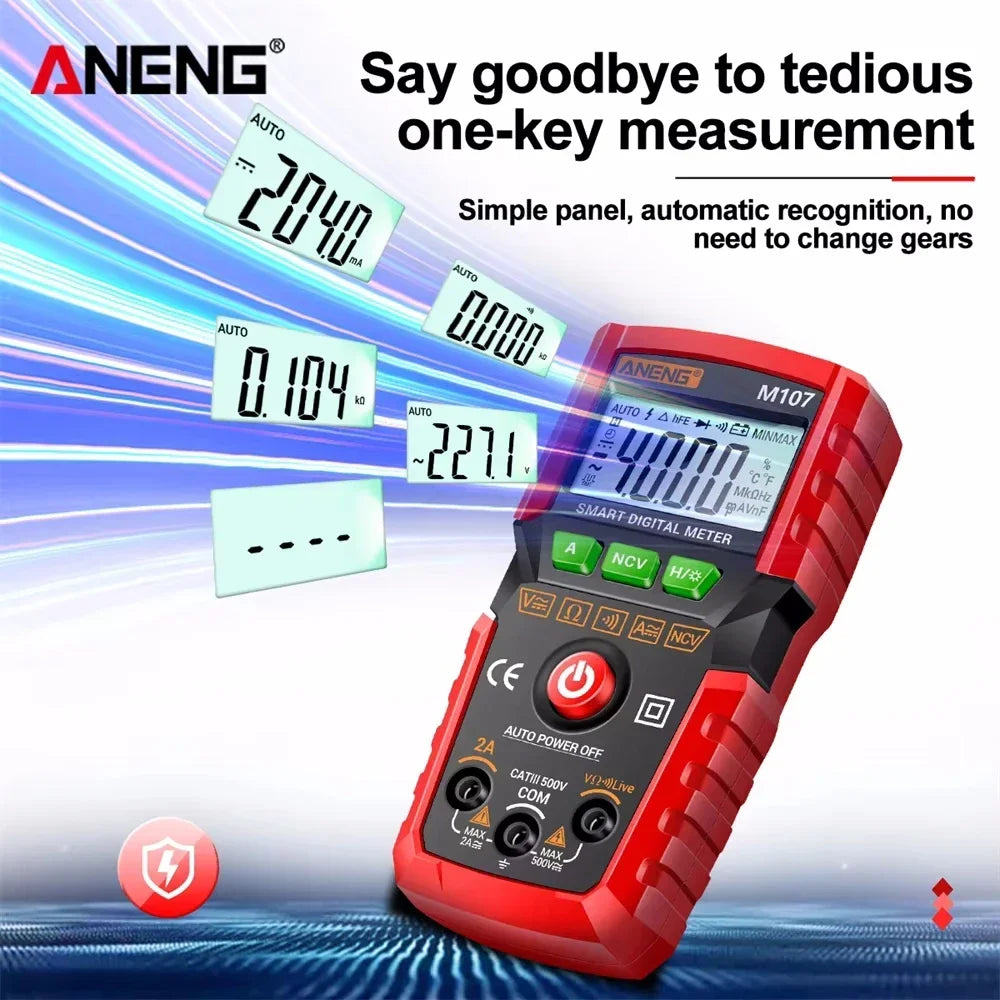

- Auto-Ranging – Automatically selects the correct range so you can measure faster
- AC & DC Voltage – Measures up to 600V AC/DC across multiple ranges
- AC & DC Current – Up to 2A with selectable 400mA / 2A ranges
- Resistance Measurement – Ranges from 4kΩ up to 20MΩ

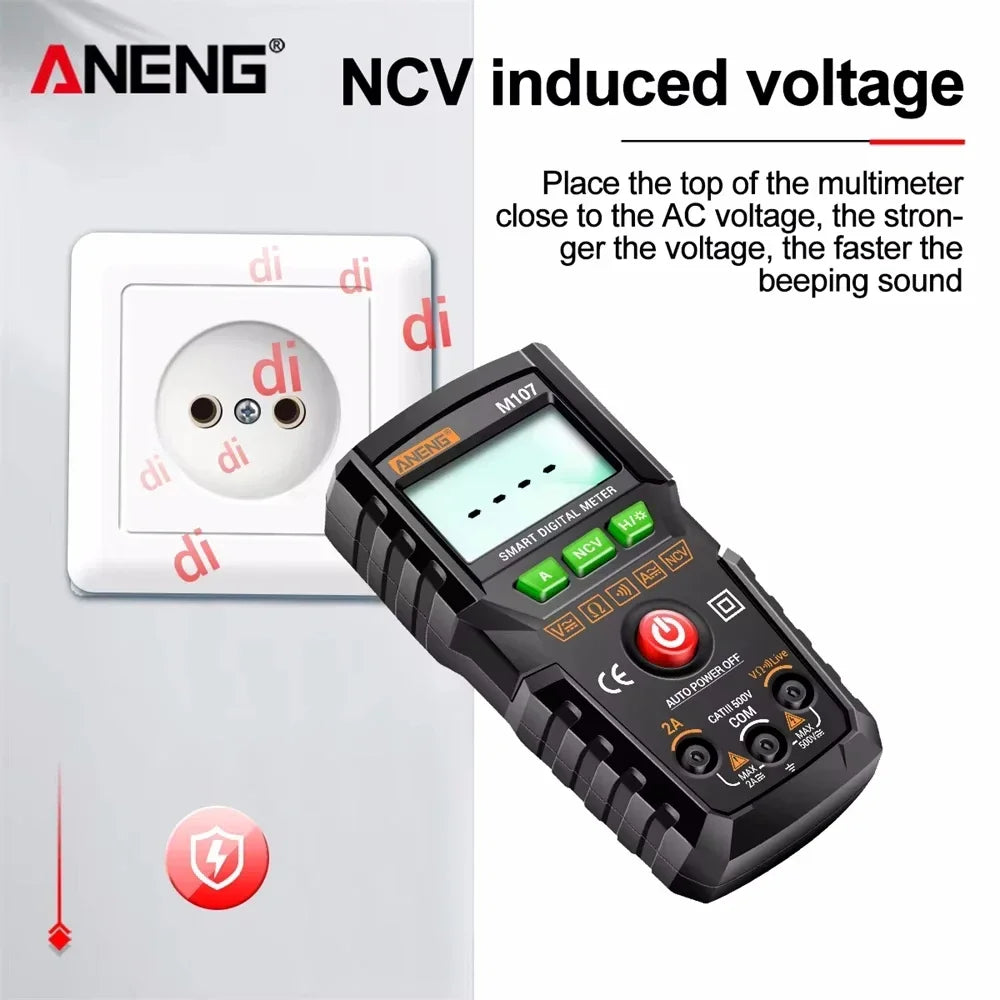

- NCV (Non-Contact Voltage) Detection – Quickly check for live wires without direct contact
- Continuity Test – Audible buzzer confirms circuit continuity instantly
- Data Hold – Freeze the reading on-screen for hands-free recording
- LCD Backlight – Work confidently in low-light environments
- Built-In Flashlight – Illuminate dark panels or wiring without a separate torch
- Auto Power Off – Conserves battery life when the meter is idle
- Low Battery Indication – Know when it's time to replace the batteries
- Compact ABS/PVC Body – Lightweight and pocket-friendly
M107 vs M108 – Which Model Is Included?
This listing covers the M107 model. The M107 focuses on core voltage, current, and resistance measurements plus NCV and continuity, making it an ideal everyday carry meter. The M108 (also available) adds diode testing and capacitance measurement. Both share the same 4000-count display, auto-ranging engine, backlight, flashlight, data hold, and auto power-off features.
M107 Accuracy Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 4V / 40V | ±(1.0%+5d) |
| 400V / 500V | ±(1.2%+5d) | |
| AC Voltage | 4V / 40V | ±(1.2%+5d) |
| 400V / 500V | ±(1.5%+8d) | |
| DC Current (DCA) | 400mA | ±(1.5%+5d) |
| 2A | ±(2.5%+8d) | |
| AC Current (ACA) | 400mA | ±(1.8%+6d) |
| 2A | ±(3.0%+8d) | |
| Resistance | 4kΩ | ±(1.5%+10d) |
| 40kΩ / 400kΩ / 4MΩ | ±(1.0%+5d) | |
| 20MΩ | ±(1.5%+10d) |
General Specifications
- Brand: ANENG | Model: M107
- Display: 4000-count LCD with backlight
- Ranging: Auto
- True RMS: No
- Material: ABS / PVC
- Power Supply: 2 × 1.5V AAA batteries (not included)
- Operating Temperature: 0°C – 40°C

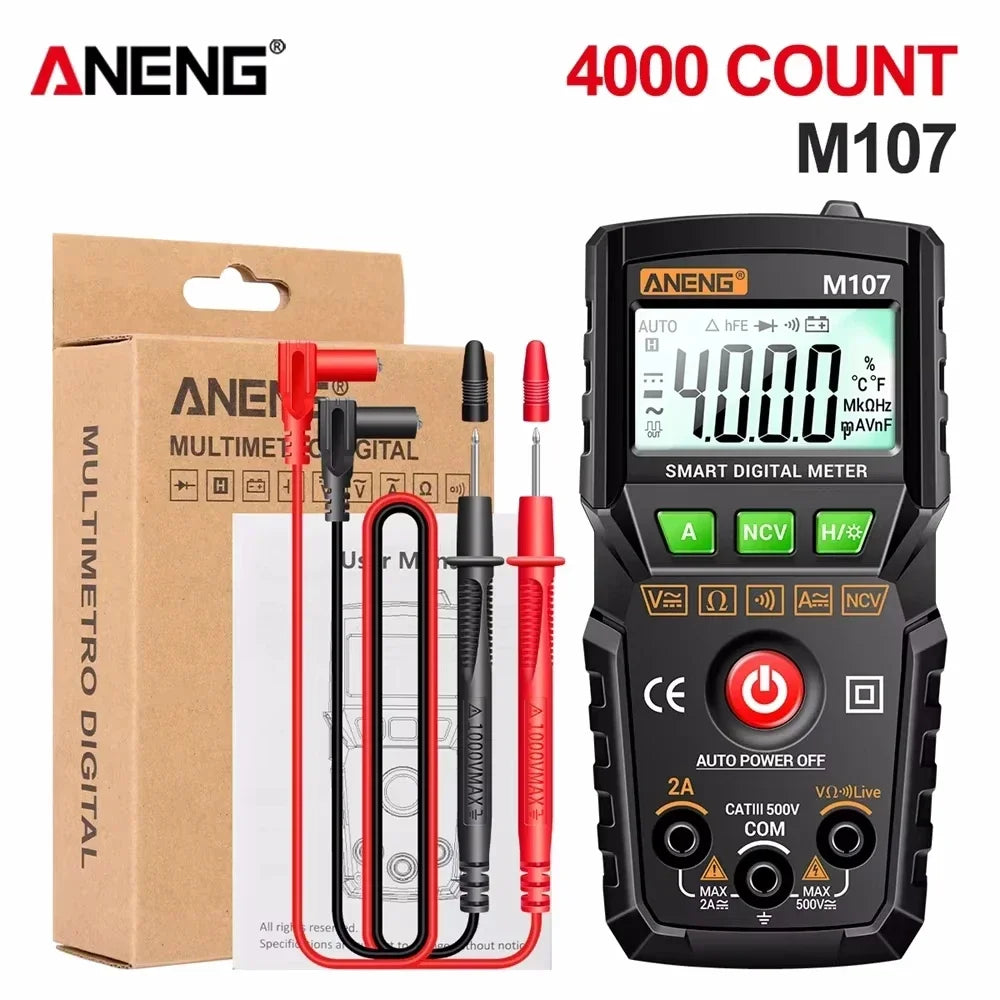

What's in the Box
- 1 × ANENG M107 Digital Multimeter
- 1 × Pair of test leads
- 1 × User manual
Need other tools for your workspace? Check out our Screw Extractor Drill Bit Set – Carbon Steel or keep your bench tidy with our 10-Pack Silicone Cable Ties – Reusable Cord Organizers.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Does the ANENG M107 digital multimeter come with batteries?
A: No, batteries are not included. The M107 multimeter requires 2 × 1.5V AAA batteries to operate. These are widely available and easy to install.
Q: What is the difference between the M107 and M108 multimeter?
A: Both are 4000-count auto-ranging mini digital multimeters with backlight, flashlight, NCV detection, data hold, and auto power-off. The M108 additionally supports diode testing and capacitance measurement, while the M107 focuses on voltage (AC/DC), current (AC/DC), resistance, NCV, and continuity testing.
Q: What does NCV mean on this digital multimeter?
A: NCV stands for Non-Contact Voltage detection. It allows the M107 to sense the presence of live AC voltage without physically touching a wire or terminal — simply hold the tip near a cable or outlet and the meter alerts you if voltage is present, adding an extra layer of safety to your electrical checks.
Q: What is the maximum voltage the ANENG M107 can measure?
A: The M107 measures up to 500V on both AC and DC voltage ranges, making it suitable for household mains (110V / 220V) and a wide range of electrical and electronics projects.
