20W Wireless Charging Transmitter Module – Fast Qi Charging for Vehicles & Desktops
This compact 20W wireless charging transmitter circuit board is the perfect DIY solution for building custom wireless chargers into your car, truck, desk, or any custom enclosure. Compatible with all Qi-enabled smartphones, it auto-identifies the optimal charging power — up to 20W — based on your device's supported protocol. Apple devices are supported at 7.5–10W wireless charging.
Key Features

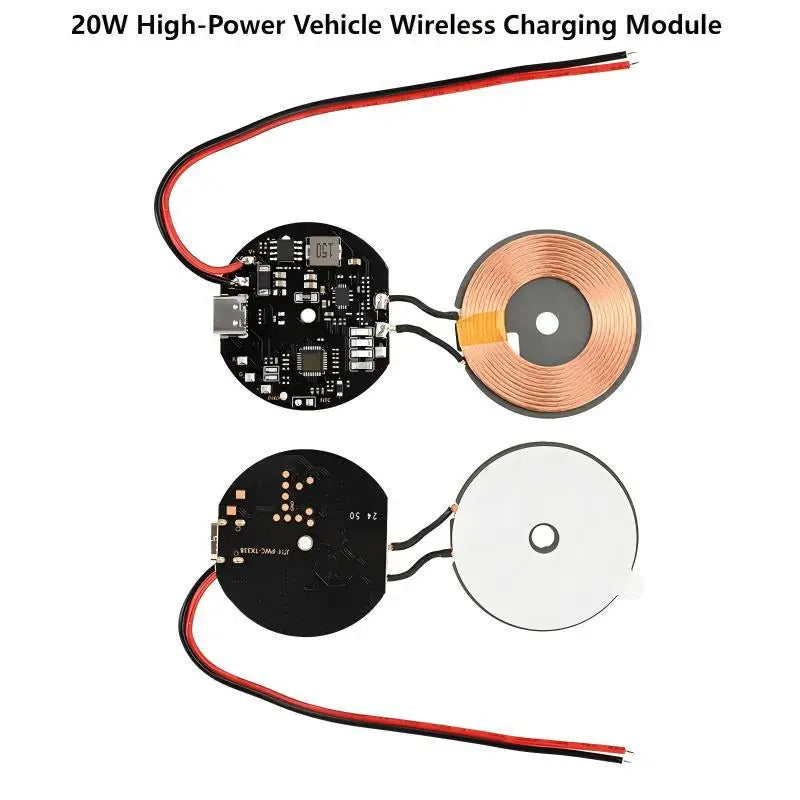

- Dual Input Options: Connect via Type-C port (5V / 9V / 12V / QC / PD adapter) or solder directly via wiring leads (9V–30V) for direct vehicle integration
- Auto Power Identification: Automatically outputs 5W, 10W, 15W, or 20W depending on the connected phone's supported protocol
- Wide Voltage Range: Welding lead input supports 9V–30V, making it ideal for 12V and 24V automotive applications
- Compact Design: Coil diameter 43mm / thickness 1.5mm; PCB diameter 43mm / thickness 4.5mm — fits neatly into custom mounts and console builds

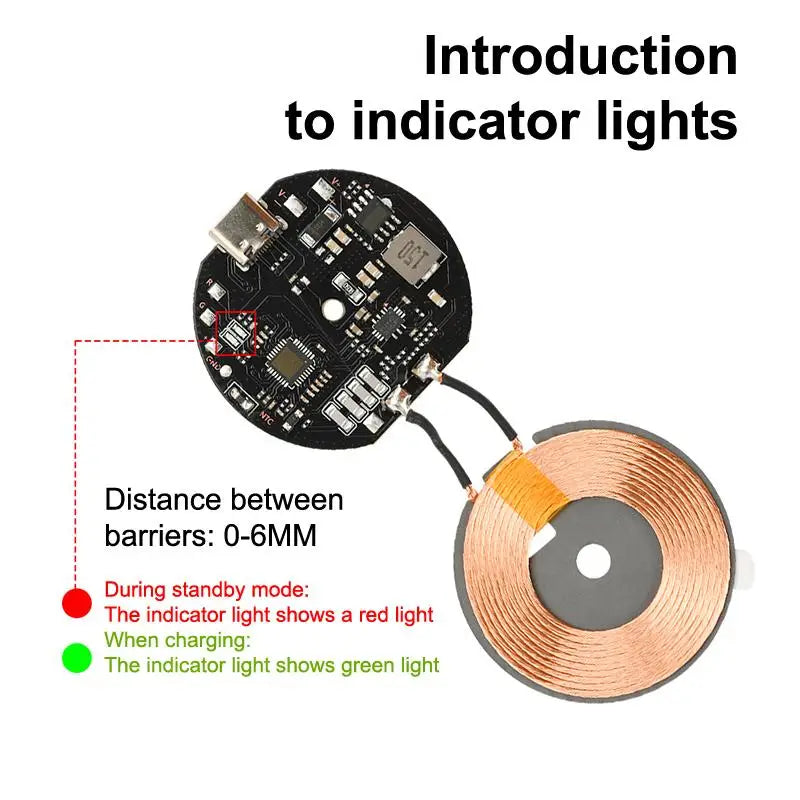

- Sensing Distance: Effective wireless charging through 2–6mm of material, allowing installation behind trim panels or desk surfaces
- Universal Qi Compatibility: Works with all Qi-standard Android and iPhone devices; Apple iPhone supported at 7.5–10W
- 100% New & High Quality — brand new PCB module, ready to integrate
Technical Specifications
| Input (Type-C) | 5V / 9V / 12V / QC / PD charging adapter |
| Input (Weld Leads) | 9V – 30V (direct vehicle connection) |
| Output Power | 5W (5V in) | 5W / 10W / 15W / 20W auto (9V–30V in) |
| Sensing Distance | 2 – 6mm |
| Coil Size | Ø43mm × 1.5mm thick |
| PCB Size | Ø43mm × 4.5mm thick |
| Apple Support | 7.5W – 10W wireless |
What's in the Box
- 1 × Wireless Charging Transmitter Module
Made in Mainland China.
Looking for other smart accessories to complete your setup? Check out our 10-Pack Silicone Cable Ties – Reusable Cord Organizers to keep your wiring tidy, or our Tactical Retractable Spring Rope Keychain Lanyard for your everyday carry essentials.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What vehicles is this 20W wireless charging module compatible with?
A: The module's weld lead input supports 9V–30V, making it compatible with standard 12V passenger vehicles, 24V trucks, vans, and most other automotive electrical systems. Simply connect the leads to a switched power source in your vehicle's console or dash for a clean, built-in wireless charger.
Q: Will this wireless charger module work with my iPhone?
A: Yes. iPhones with Qi wireless charging support (iPhone 8 and later) are compatible. Apple devices will receive up to 7.5W–10W of wireless charging power, as determined by Apple's open protocol. Android Qi devices can receive up to 15W or 20W depending on the phone's supported fast-charge protocol.
Q: How thick of a surface can the module charge through?
A: The module can transmit through up to 2–6mm of non-metallic material, such as plastic trim panels, wood, or acrylic. This means you can mount it beneath a desk surface or behind a car console panel for a seamless, hidden wireless charging pad.
Q: Does this module require a special power adapter?
A: For bench or desktop use, connect via the Type-C port using a QC or PD adapter (5V, 9V, or 12V). For vehicle use, connect the solder weld leads directly to your 12V or 24V vehicle power supply — no additional adapter is needed for automotive installations.
